Plan #484-5

Key Specs


  • 860 sq ft

  • 2 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • No Garage

Plan Description

Building on our popularly embraced Hummingbird, we heard the chirping for more and decided to make our newest nest a little bigger. We took our Hummingbird, stretched it four feet, added a luxurious bedroom suite replete with full bath, storage and walk-in closet and then expanded the Chill Deck and added an optional exterior fireplace. Like its sibling the Hummingbird,the 860 square-foot two-bedroom, two-bath h2 is equipped with the latest in green building technology and design. In its element as a sun-kissed tropical getaway, a high desert plains drifter, or a mountain retreat, the h2's stylish contemporary design fits amazingly well into any environment. And if you're downsizing your lifestyle and reducing debt load, the functional and efficient Hummingbird H2 makes perfect sense as a primary residence.

Floor Plans

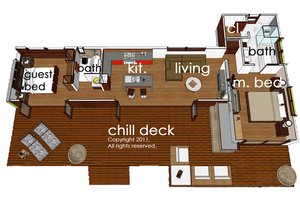

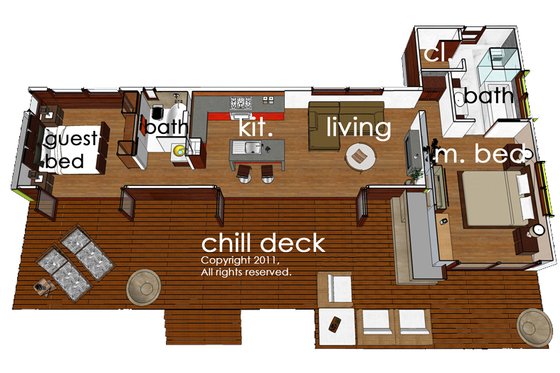

Main Floor Plan
Saved! Modern Style House Plan - 2 Beds 2 Baths 860 Sq/Ft Plan #484-5 Main Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 1
Garage Stalls : 0
Potential Bedrooms : 2
Bedrooms : 2
Baths : 2

Dimension

Width : 56'
Height : 16'
Depth : 36'

Area

Decks Sq Ft : 630 sq ft
Total Sq Ft : 860 sq ft
Main Floor Sq Ft : 860 sq ft

Ceiling

Main Ceiling Ft : 8'
Ceiling Details : "Heat Stack" design draws air from lower ceiling areas and ventilates through the upper ceiling clerestory cooling the home passively.
Upper Ceiling Ft : 14'

Roof

Roof Framing : Wood
Primary Pitch : 1:12

Exterior Wall Framing

Framing : 2"x4"
Exterior Wall Finish : Cementiteous panel
Insulation : 15,19

Bedroom Features

Main Floor Bedrooms
Walk In Closet
Guest Suite
Main Floor Master Bedroom
In Law Suite

Kitchen Features

Kitchen Island
Peninsula Eating Bar

Additional Room Features

Hobby Rec Room Game Room
Great Room Living Room
Den Office Study Computer

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Grill Deck Sundeck

More

Economical To Build
Empty Nester
Suited For Vacation Home

Code Compliance

Ubc 1997

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural Notes
Structural Roof Framing

Energy Efficient Features

Green Specifications
Sip
Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$1395.00
8 Copy Set
$1595.00
PDF Set
$1595.00
Reproducible Set
$1595.00
CAD Set
$2495.00
Single Set
$1095.00

Foundation Price

Crawlspace
+$0.00
Slab
+$0.00
Pier
+$250.00

Additional Construction Sets $40.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $150.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
