- GENERAL SPECIFICATIONS SHEET
- FOUNDATION PLAN: Includes basic site plan on square plot.
- FLOOR PLAN(S): Includes main floor plan fully dimensioned; upper floor plan if applicable
- BUILDING SECTIONS: Dimensioned and noted
- ROOF PLAN: Showing hips, peaks and valleys of roof. Also includes general framing notes but not a full framing plan.
- ELEVATIONS: Front, rear and sides
Plan Set Price
Additional Construction Sets $50.00/each
Mirror Reverse Sets $55.00/each
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

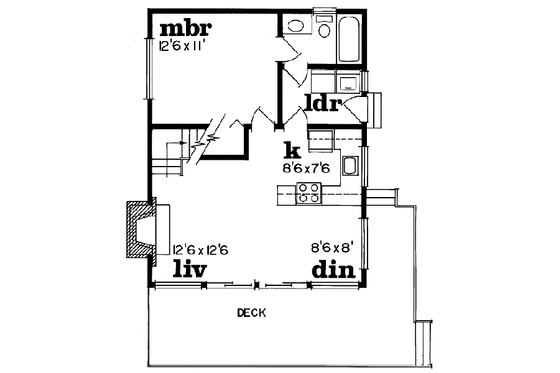

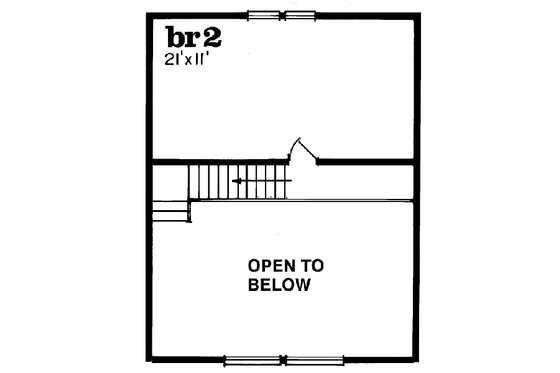

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Best Price Policy
To find out what documents you should expect with your house plans, see what's included?
How much will this cost to build?
This plan can be modified!
