Plan #118-123

Key Specs


  • 960 sq ft

  • 0 Bedrooms

  • 0 Bathrooms

  • 1 Floor

  • 2 Garage

Plan Description

This RV Garage combined with a Single Car Garage plan combines space for recreational vehicle as well as the family or vintage vehicle, all within an economical footprint. \ \ The RV garage portion boasts a ten foot plus ceiling height, perfect for storing either a RV or an over-sized boat, or providing car jacking clearance height for the car enthusiast. Plans accommodate a rear overhead garage door for drive through ease. \ \ The side load Single Car Garage portion of this plan has an eight foot ceiling height and boasts ample work bench space. Add a partition wall to separate the garage from the workshop and install heating to enable comfortable year round use.
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

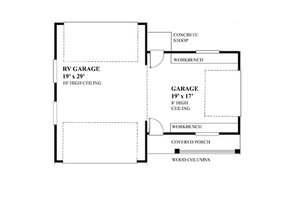

Floor Plan - Main Floor Plan
House Plan - 0 Beds 0 Baths 960 Sq/Ft Plan #118-123 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Stories : 1
Bedrooms : 0
Garage Stalls : 2
Baths : 0
Potential Bedrooms : 0

Dimension

Height : 19'
Width : 40'
Depth : 30'

Area

Porch Sq Ft : 80 sq ft
Garage Sq Ft : 960 sq ft
Total Sq Ft : 960 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 10'
Garage Ceiling Ft : 8'

Roof

Roof Type : metal roof
Roof Load : 47
Roof Framing : Truss
Primary Pitch : 9:12

Exterior Wall Framing

Framing : 2"x6"
Exterior Wall Finish : Horizontal Siding
Insulation : 20

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Main Floor Bedrooms

Kitchen Features

Peninsula Eating Bar
Kitchen Island

Additional Room Features

Hobby Rec Room Game Room
Storage Area
Main Floor Laundry
Family Room Keeping Room
Unfinished Future Space
Great Room Living Room

Garage Features

RV Garage
Side Entry Garage
Front Entry Garage
Split Garage
Oversized Garage
Rear Entry Garage
Detached Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot
Suited For View Lot
Suited For Sloping Lot

Outdoor Spaces

Outdoor Kitchen Grill
Covered Rear Porch
Loft Balcony
Covered Front Porch

More

Suited For Vacation Home
Unusual Shape

Code Compliance

Irc 2006
Nbcc

What's included in this plan set

See a sample plan set

  • Cover sheet with rendering and art floor plans
  • General notes and specifications
  • Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
  • Foundation plan at 1/4″=1′-0″
  • Main floor plan at 1/4″=1′-0″
  • Second floor plan at 1/4″=1′-0″, if applicable
  • Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
  • Electrical floor plans
  • Minimum of two cross sections at 1/4″=1′-0″
  • Details as required
  • All four elevations at 1/4″=1′-0″
  • Generic detail sheet
  • Plans are engineered by a structural engineer, but not stamped or sealed
  • Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
  • Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
  • Assumed soil bearing capacity 1560 psf
  • Electrical fixtures / switches / smoke alarms by location only on floor plans
  • Plumbing fixtures by location only on floor plans
  • Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $325.00 5 printed plan sets mailed to you.
8 Copy Set $375.00 8 printed plan sets mailed to you.
PDF Set Best Value! $475.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $475.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set $250.00 One printed set for bidding purposes only. Not a legal building set.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Copies $55.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reverse Sets $100.00/each Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

What's included?
Instant Download After Checkout

Subtotal $325.00

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
Your recently viewed plans

Need help? Let our friendly experts help you find the perfect plan!
Contact us now for a free consultation.
Call: 1-800-913-2350
Email: sales@houseplans.com

Have a Question?

You can also give us a call at 1-800-913-2350 (6am - 6pm) M-F to ask us your question(s).

Thank you for your inquiry. We will try to respond to your question within 24 hours and often respond within minutes, even after hours.
