Plan #23-584

Traditional Exterior - Front Elevation Plan #23-584 - Houseplans.com
  • 3733 sq ft
  • 4 beds
  • 3.5 baths
  • 71' wide
  • 53' deep


Material List
Plan Set
5 Copy Set
8 Copy Set
Reproducible Set
Right-Reading Reverse
Additional Construction Sets
Each Additional Set

House Features

  • Guest Suite
  • Upstairs Master Bedrooms
  • Teen Suite Jack Jill Bath
  • Walk In Closet
  • Breakfast Nook
  • Peninsula Eating Bar
  • Kitchen Island
  • Family Room Keeping Room
  • Storage Area
  • Great Room Living Room
  • Side Entry Garage
  • Oversized Garage
  • Wrap Around Porch
  • Covered Front Porch
  • Loft Balcony
  • Covered Rear Porch
  • Screened Porch Sunroom
  • Suited For View Lot
  • Family Room Keeping Room
  • Storage Area
  • Great Room Living Room

Styles Classifications

  • Traditional


Garage Sq Ft 874 sq ft
Upper Floor Sq Ft 2207 sq ft
Total Sq Ft 3733 sq ft
Main Floor Sq Ft 1526 sq ft
Depth 53'
Width 71'
Floor Plan - Main Floor Plan

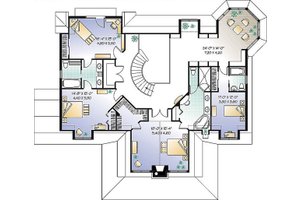

Floor Plan - Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
