Plan #413-855

Front Elevation Plan #413-855 - Houseplans.com
  • 3803 sq ft
  • 4 beds
  • 3.50 baths
  • 62' wide
  • 64' deep

Pricing

Plan Set
5 Copy Set
$1700.00
CAD Set
$2400.00
PDF Set
$1200.00
Foundation
Basement
+$400.00
Crawlspace
+$0.00
Daylight Basement
+$400.00
Slab
+$200.00
Right-Reading Reverse
Each
+$200.00
Additional Construction Sets
Each Additional Set
+$100.00

House Features

  • Main Floor Master Bed Bath
  • Split Bedrooms
  • Walk In Closet
  • Nook Breakfast Area Dining
  • Walk In Pantry Cabinet Pantry
  • Kitchen Island
  • Hobby Rec Room Game Room
  • Storage Area
  • Unfinished Future Space
  • Den Office Study Computer
  • Mud Room
  • Loft Balcony
  • Covered Front Porch
  • Suited For Corner Lot
  • Suited For View Lot
  • Hobby Rec Room Game Room
  • Storage Area
  • Unfinished Future Space
  • Den Office Study Computer
  • Teen Suite Jack Jill Bath

Styles Classifications

  • European
  • Tudor

Specifications

Main Floor Sq Ft 2402 sq ft
Upper Floor Sq Ft 1401 sq ft
Total Sq Ft 3803 sq ft
Garage Sq Ft 593 sq ft
Porch Sq Ft 31 sq ft
Depth 64'
Height 39'
Width 62'
Primary Pitch 14:12
Main Ceiling Ft 10'
Upper Ceiling Ft 9'

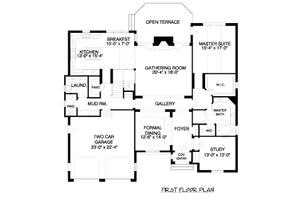

Main Floor Plan

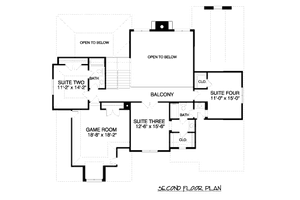

Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
