Plan #120-162

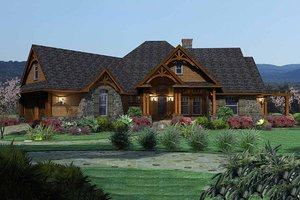

Craftsman style home, elevation
  • 2091 sq ft
  • 3 beds
  • 2.5 baths
  • 79' wide
  • 71' deep

Pricing

Plan Set
5 Copy Set
$995.00
8 Copy Set
$1145.00
CAD Set
$1995.00
PDF Set
$1245.00
PDF Study Set
$795.00
Foundation
Basement
+$300.00
Crawlspace
+$200.00
Daylight Basement
+$300.00
Slab
+$0.00
Right-Reading Reverse
Each
+$200.00
Additional Construction Sets
Each Additional Set
+$50.00

House Features

  • Split Bedrooms
  • Walk In Closet
  • Main Floor Bed Bath
  • Main Floor Master Bed Bath
  • Kitchen Island
  • Walk In Pantry Cabinet Pantry
  • Peninsula Eating Bar
  • Nook Breakfast Area Dining
  • Master Sitting Area
  • Media Room
  • Family Room Keeping Room
  • Main Floor Laundry
  • Bonus Play Flex Room
  • Den Office Study Computer
  • Unfinished Future Space
  • Hobby Rec Room Game Room
  • Side Entry Garage
  • Covered Front Porch
  • Grill Deck Sundeck
  • Outdoor Kitchen Grill
  • Covered Rear Porch
  • Unique Features
  • Unusual Shape
  • Suited For Vacation Home
  • Empty Nester
  • Suited For Corner Lot
  • Suited For Sloping Lot
  • Suited For View Lot
  • Master Sitting Area
  • Media Room
  • Family Room Keeping Room
  • Main Floor Laundry
  • Bonus Play Flex Room
  • Den Office Study Computer
  • Unfinished Future Space
  • Hobby Rec Room Game Room
  • Teen Suite Jack Jill Bath
  • Energy Efficient Design

Styles Classifications

  • Bungalow
  • Craftsman

Specifications

Total Sq Ft 2091 sq ft
Patios Sq Ft 281 sq ft
Porch Sq Ft 448 sq ft
Basement Sq Ft 2091 sq ft
Bonus Sq Ft 349 sq ft
Main Floor Sq Ft 2091 sq ft
Garage Sq Ft 549 sq ft
Depth 71'
Width 79'
Height 30'
Secondary Pitch 6:12
Primary Pitch 12:12
Roof Load 30
Roof Type Composition
Roof Framing stick
Main Ceiling Ft 10'
Ceiling Details Stepped ceiling in Family, Dining and Master Suite starting at 12' and going up from there.
Garage Ceiling Ft 8'
Bonus Ceiling Ft 9'
Main Floor Plan
Upper Floor Plan
Lower Floor Plan
Other Floor Plan
Other Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
