Plan #453-27

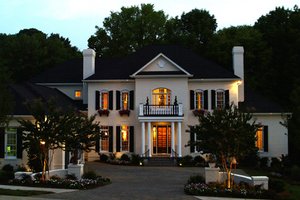

Colonial Front Elevation Plan #453-27 - Houseplans.com
  • 5432 sq ft
  • 5 beds
  • 5.5 baths
  • 82' wide
  • 106' deep

Pricing

Mirror Reversed Sets
Each Additional Set
+$50.00
Plan Set
5 Copy Set
$1650.00
CAD Set
$4500.00
PDF Set
$2250.00
Reproducible Set
$2250.00
Foundation
Crawlspace
+$0.00
Right-Reading Reverse
Each
+$0.00
Additional Construction Sets
Each Additional Set
+$50.00

House Features

  • Upstairs Bedrooms Bath
  • Walk In Closet
  • Guest Suite
  • Main Floor Master Bed Bath
  • Kitchen Island
  • Peninsula Eating Bar
  • Nook Breakfast Area Dining
  • Walk In Pantry Cabinet Pantry
  • Great Room Living Room
  • Den Office Study Computer
  • Main Floor Laundry
  • Family Room Keeping Room
  • Storage Area
  • Oversized Garage
  • Side Entry Garage
  • Loft Balcony
  • Screened Porch Sunroom
  • Covered Front Porch
  • Suited For Vacation Home
  • Unique Features
  • Suited For Sloping Lot
  • Suited For View Lot
  • Great Room Living Room
  • Den Office Study Computer
  • Main Floor Laundry
  • Family Room Keeping Room
  • Storage Area

Styles Classifications

  • Traditional
  • Colonial

Specifications

Total Sq Ft 5432 sq ft
Main Floor Sq Ft 3487 sq ft
Garage Sq Ft 951 sq ft
Upper Floor Sq Ft 1945 sq ft
Width 82'
Depth 106'
Upper Ceiling Ft 9'
Main Ceiling Ft 10'

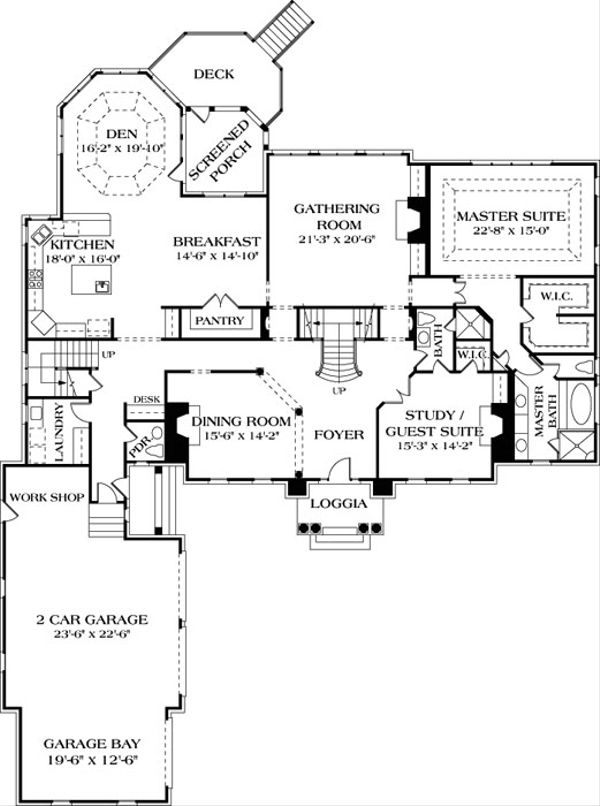

Main Floor Plan

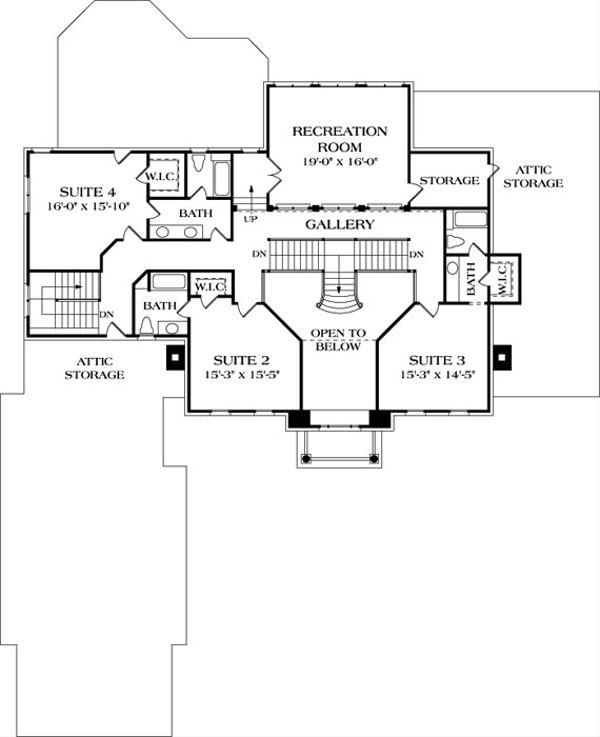

Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
