Plan #484-1

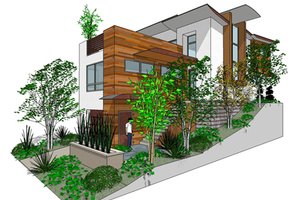

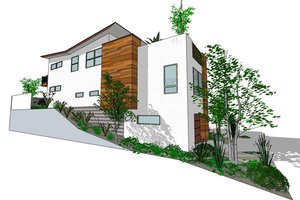

Houseplans.com Modern Front Elevation Plan #484-1
  • 1990 sq ft
  • 3 beds
  • 3.50 baths
  • 24' wide
  • 56' deep

Pricing

Plan Set
5 Copy Set
$3495.00
8 Copy Set
$3595.00
CAD Set
$3995.00
PDF Set
$3595.00
Reproducible Set
$3595.00
Single Set
$2995.00
Foundation
Partial Basement Slab
+$0.00
Slab
+$150.00
Additional Construction Sets
Each Additional Set
+$40.00
Right-Reading Reverse
Each
+$150.00
Mirror Reversed Sets
Each Additional Set
+$0.00

House Features

  • Upstairs Bedrooms Bath
  • Walk In Closet
  • Main Floor Master Bed Bath
  • Peninsula Eating Bar
  • Kitchen Island
  • Bonus Play Flex Room
  • Tandem Garage
  • Front Entry Garage
  • Garage Under
  • Outdoor Kitchen Grill
  • Loft Balcony
  • Covered Rear Porch
  • Grill Deck Sundeck
  • Unique Features
  • Economical To Build
  • Suited For Vacation Home
  • Suited For Narrow Lot
  • Suited For Sloping Lot
  • Suited For View Lot
  • Suited For Corner Lot
  • Bonus Play Flex Room
  • Energy Efficient Design
  • Sip

Styles Classifications

  • Modern

Specifications

Upper Floor Sq Ft 778 sq ft
Garage Sq Ft 462 sq ft
Bonus Sq Ft 182 sq ft
Main Floor Sq Ft 1048 sq ft
Decks Sq Ft 454 sq ft
Patios Sq Ft 132 sq ft
Lower Floor Sq Ft 165 sq ft
Total Sq Ft 1990 sq ft
Height 32'
Depth 56'
Width 24'
Roof Framing Wood
Roof Type Metal
Primary Pitch 2:12
Roof Load 30
Main Ceiling Ft 10'
Ceiling Details Ceilings of upper master, bonus and secondary bedrooms are mono-vaulted.
Lower Floor Plan
Main Floor Plan
Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
