Plan #487-3

Craftsman Front Elevation Plan #487-3 - Houseplans.com
  • 642 sq ft
  • 1 beds
  • 1 baths
  • 30' wide
  • 34' deep

Pricing

Plan Set
CAD Set
$1310.00
PDF Set
$780.00
Reproducible Set
$780.00
Single Set
$570.00
Foundation
Daylight Basement
+$0.00
Slab
+$0.00
Right-Reading Reverse
Each
+$180.00

House Features

  • In Law Suite
  • Guest Suite
  • Main Floor Master Bed Bath
  • Kitchenette Wet Bar
  • Master Sitting Area
  • Library Room
  • Great Room Living Room
  • Workshop
  • Bonus Play Flex Room
  • Den Office Study Computer
  • Storage Area
  • Unfinished Future Space
  • Exercise Room
  • Hobby Rec Room Game Room
  • Garage Under
  • Tandem Garage
  • Oversized Garage
  • Side Entry Garage
  • Friend S Entry
  • Split Entry
  • Loft Balcony
  • Covered Front Porch
  • Breezeway
  • Covered Rear Porch
  • Unique Features
  • Unusual Shape
  • Suited For Vacation Home
  • Empty Nester
  • Economical To Build
  • Suited For Narrow Lot
  • Suited For Corner Lot
  • Suited For Sloping Lot
  • Suited For View Lot
  • Master Sitting Area
  • Library Room
  • Great Room Living Room
  • Workshop
  • Bonus Play Flex Room
  • Den Office Study Computer
  • Storage Area
  • Unfinished Future Space
  • Exercise Room
  • Hobby Rec Room Game Room
  • Rv Garage
  • Energy Efficient Design

Styles Classifications

  • Craftsman

Specifications

Total Sq Ft 642 sq ft
Upper Floor Sq Ft 642 sq ft
Porch Sq Ft 52 sq ft
Main Floor Sq Ft 896 sq ft
Garage Sq Ft 896 sq ft
Storage Sq Ft 134 sq ft
Depth 34'
Width 30'
Height 27'
Secondary Pitch 14:12
Primary Pitch 10:12
Roof Load 30lb Snow, 20lb Light Storage
Roof Type Architectural Comp
Roof Framing MFD Trusses, 2x12 Rafters
Main Ceiling Ft 9'
Ceiling Details Vaulted from 8 foot to 11 foot, 3 inches high at Living Area
Upper Ceiling Ft 11'

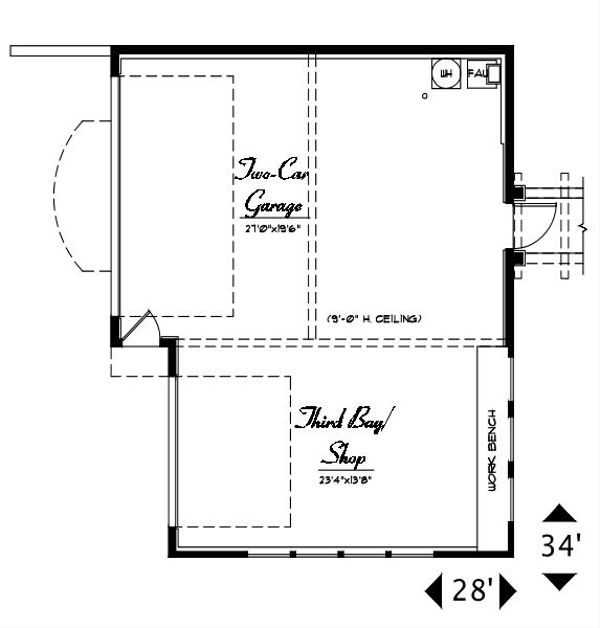

Main Floor Plan

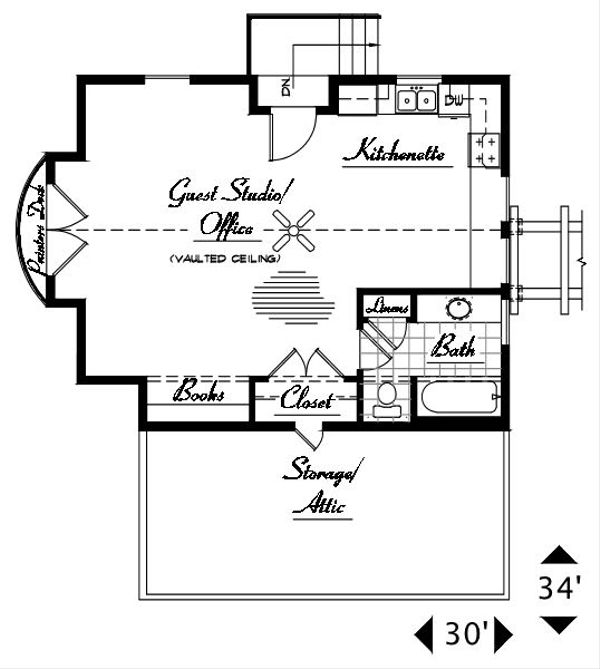

Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
