Plan #138-336

Houseplans.com Front Elevation Plan #138-336
  • 2121 sq ft
  • 3 beds
  • 2.50 baths
  • 32' wide
  • 40' deep

Pricing

Plan Set
5 Copy Set
$735.00
8 Copy Set
$760.00
CAD Set
$1495.00
PDF Set
$955.00
Reproducible Set
$955.00
Single Set
$660.00
Foundation
Basement
+$0.00
Right-Reading Reverse
Each
+$100.00
Additional Construction Sets
Each Additional Set
+$50.00

House Features

  • Upstairs Bedrooms Bath
  • Walk In Closet
  • Upstairs Master Bdrm
  • Nook Breakfast Area Dining
  • Storage Area
  • Family Room Keeping Room
  • Unfinished Future Space
  • Main Floor Laundry
  • Covered Front Porch
  • Suited For Narrow Lot
  • Storage Area
  • Family Room Keeping Room
  • Unfinished Future Space
  • Main Floor Laundry

Styles Classifications

  • European

Specifications

Bonus Sq Ft 238 sq ft
Garage Sq Ft 331 sq ft
Main Floor Sq Ft 1074 sq ft
Total Sq Ft 2121 sq ft
Porch Sq Ft 28 sq ft
Basement Sq Ft 1074 sq ft
Upper Floor Sq Ft 1047 sq ft
Width 32'
Height 35'
Depth 40'
Secondary Pitch 12:12
Primary Pitch 16:12
Roof Framing Truss
Roof Load 40
Main Ceiling Ft 9'
Upper Ceiling Ft 8'
Ceiling Details ceiling sloped in master bedroom and optional family room

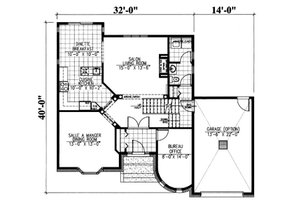

Main Floor Plan
Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
