Plan #117-803

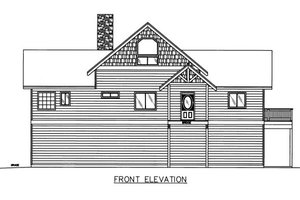

Contemporary Exterior - Front Elevation Plan #117-803 - Houseplans.com
  • 3337 sq ft
  • 3 beds
  • 2.5 baths
  • 58' wide
  • 37' deep


Mirror Reversed Sets
Each Additional Set
Plan Set
5 Copy Set
8 Copy Set
Reproducible Set
Daylight Basement
Right-Reading Reverse
Additional Construction Sets
Each Additional Set

House Features

  • Split Bedrooms
  • Walk In Closet
  • Main Floor Master Bedroom
  • Kitchen Island
  • Breakfast Nook
  • Peninsula Eating Bar
  • Walk In Pantry Cabinet Pantry
  • Storage Area
  • Great Room Living Room
  • Workshop
  • Hobby Rec Room Game Room
  • Den Office Study Computer
  • Garage Under
  • Side Entry Garage
  • Loft Balcony
  • Covered Front Porch
  • Grill Deck Sundeck
  • Suited For View Lot
  • Suited For Sloping Lot
  • Storage Area
  • Great Room Living Room
  • Workshop
  • Hobby Rec Room Game Room
  • Den Office Study Computer

Styles Classifications

  • Bungalow
  • Contemporary
  • Craftsman


Total Sq Ft 3337 sq ft
Garage Sq Ft 589 sq ft
Upper Floor Sq Ft 338 sq ft
Main Floor Sq Ft 1794 sq ft
Lower Floor Sq Ft 1205 sq ft
Width 58'
Height 28'
Depth 37'
Primary Pitch 6:12
Ceiling Details Upper floor ceiling is 9'7" and lower floor is 10'6".
Lower Ceiling Ft 10'
Upper Ceiling Ft 9'
Main Ceiling Ft 9'

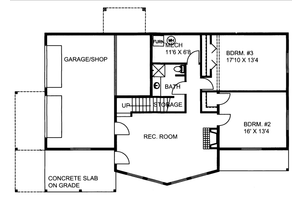

Floor Plan - Lower Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
