Plan #27-453

Houseplans.com Mediterranean Front Elevation Plan #27-453
  • 4480 sq ft
  • 3 beds
  • 5.00 baths
  • 120' wide
  • 78' deep

Pricing

Plan Set
CAD Set
$2715.00
PDF Set
$2715.00
Foundation
Slab
+$0.00
Mirror Reversed Sets
Each Additional Set
+$250.00

House Features

  • Walk In Closet
  • Guest Suite
  • Main Floor Bed Bath
  • Main Floor Master Bed Bath
  • Split Bedrooms
  • In Law Suite
  • Kitchen Island
  • Butler S Pantry
  • Nook Breakfast Area Dining
  • Peninsula Eating Bar
  • Walk In Pantry Cabinet Pantry
  • Bonus Play Flex Room
  • Storage Area
  • Library Room
  • Master Sitting Area
  • Den Office Study Computer
  • Workshop
  • Great Room Living Room
  • Front Entry Garage
  • Side Entry Garage
  • Loft Balcony
  • Outdoor Kitchen Grill
  • Covered Front Porch
  • Covered Rear Porch
  • Empty Nester
  • Bonus Play Flex Room
  • Storage Area
  • Library Room
  • Master Sitting Area
  • Den Office Study Computer
  • Workshop
  • Great Room Living Room
  • Teen Suite Jack Jill Bath

Styles Classifications

  • Bungalow
  • Craftsman
  • Mediterranean
  • European

Specifications

Upper Floor Sq Ft 761 sq ft
Garage Sq Ft 720 sq ft
Main Floor Sq Ft 3719 sq ft
Total Sq Ft 4480 sq ft
Height 33'
Width 120'
Depth 78'
Roof Type Cement Tile
Primary Pitch 6:12
Roof Framing Truss

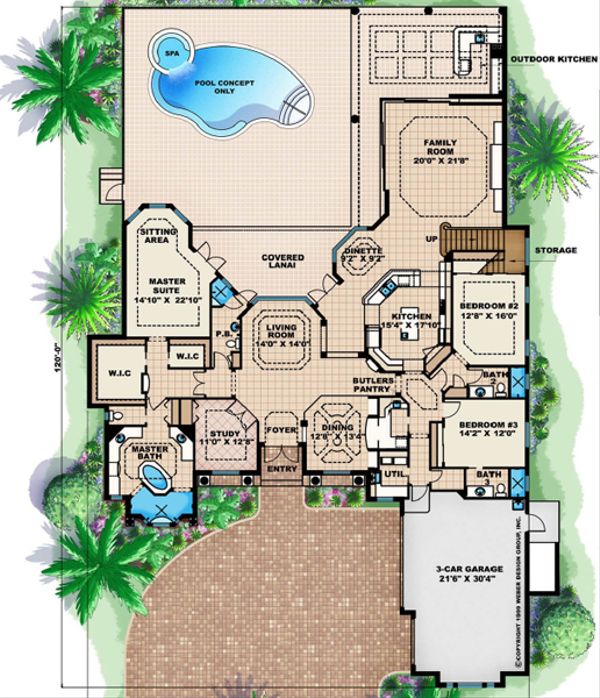

Main Floor Plan

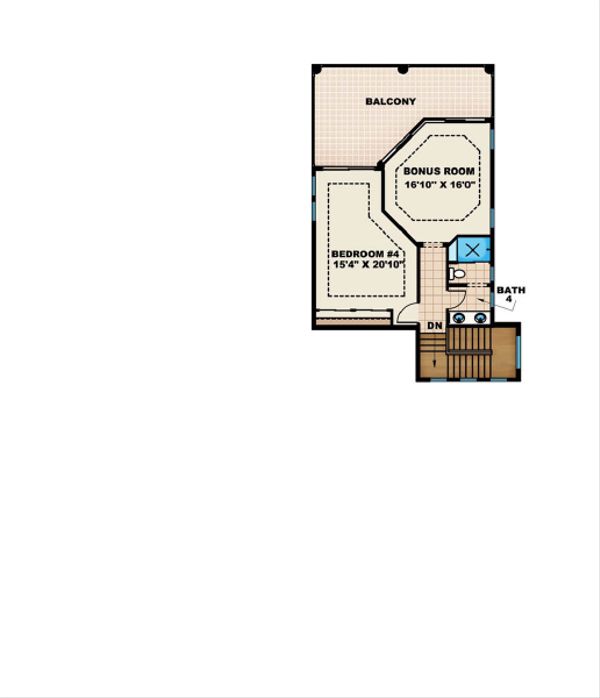

Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
