Plan #449-19

Mediterranean Exterior - Front Elevation Plan #449-19 - Houseplans.com
  • 2375 sq ft
  • 3 beds
  • 3.5 baths
  • 24' wide
  • 60' deep


Plan Set
5 Copy Set
Right-Reading Reverse

House Features

  • Main Floor Bedrooms
  • Split Bedrooms
  • Upstairs Bedrooms
  • Walk In Closet
  • Upstairs Master Bedrooms
  • Kitchen Island
  • Peninsula Eating Bar
  • Walk In Pantry Cabinet Pantry
  • Master Sitting Area
  • Upstairs Laundry
  • Inverted Living
  • Garage Under
  • Front Entry Garage
  • Grill Deck Sundeck
  • Suited For Vacation Home
  • Suited For Narrow Lot
  • Zero Lot Lines
  • Master Sitting Area
  • Upstairs Laundry
  • Inverted Living

Styles Classifications

  • European
  • Mediterranean


Total Sq Ft 2375 sq ft
Upper Floor Sq Ft 907 sq ft
Main Floor Sq Ft 977 sq ft
Lower Floor Sq Ft 491 sq ft
Width 24'
Height 40'
Depth 60'
Primary Pitch 8:12
Roof Type Composition (tile over second floor Juliet balcony)
Roof Framing Conventional
Ceiling Details Living room ceiling is 11'-6". Master Bedroom ceiling is sloped to 10'-0". Master bath ceiling is vaulted in tub area.
Lower Ceiling Ft 9'
Upper Ceiling Ft 9'
Main Ceiling Ft 10'

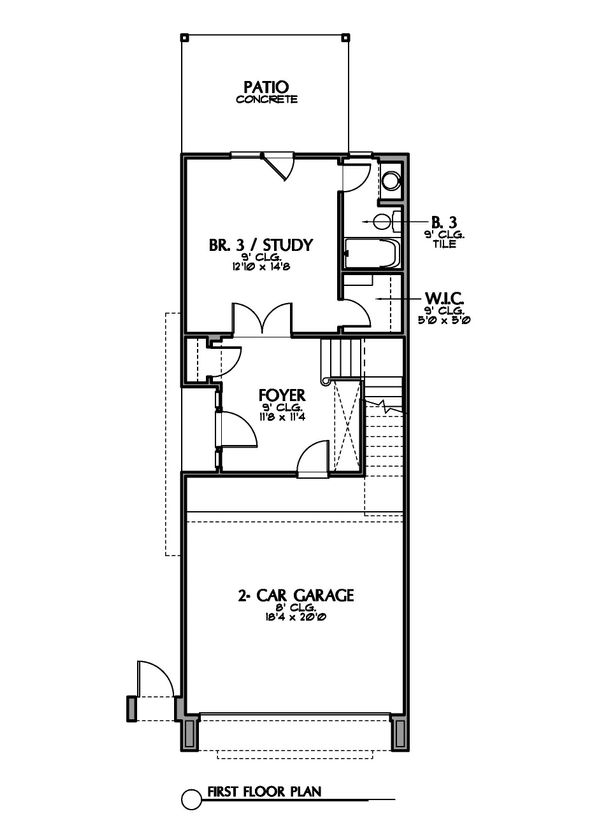

Floor Plan - Lower Floor Plan

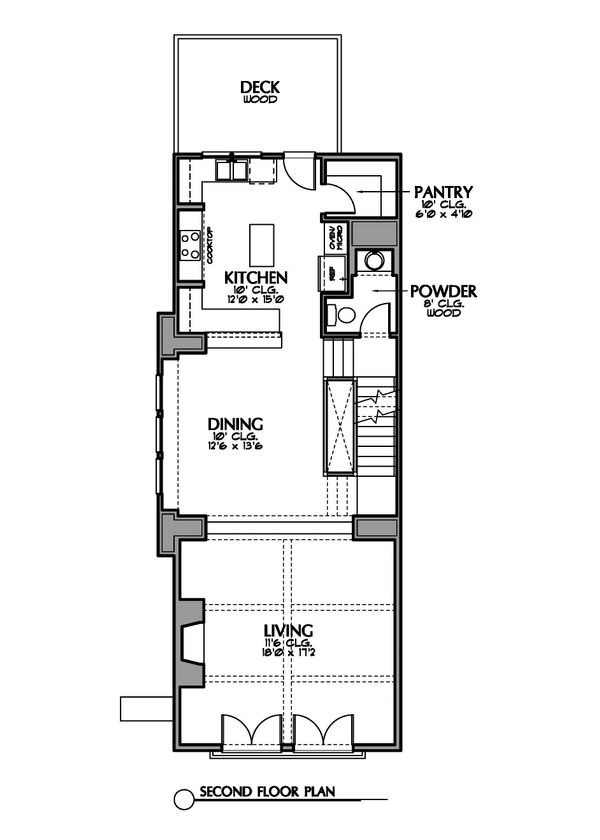

Floor Plan - Main Floor Plan

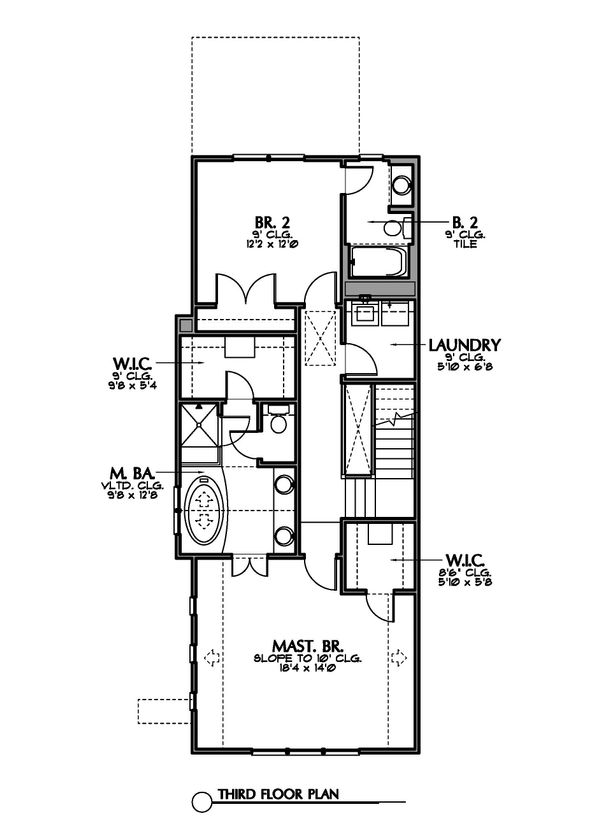

Floor Plan - Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
