Plan 100-437

2615 sq/ft,
5 beds,
3 baths,
42' wide,
52' deep


Plan Set
Reproducible Set
5 Copy Set
8 Copy Set
Daylight Basement
Right-Reading Reverse
Additional Construction Sets
Each Additional Set
Audio Video Design
Construction Guide
Lighting Design

House Features

Guest Suite
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Family Room Keeping Room
Upstairs Laundry
Den Office Study Computer
Family Room Keeping Room
Upstairs Laundry
Garage Under
Oversized Garage
Rear Entry Garage
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch

Styles Classifications



865 sq/ft
Lower Floor
68 sq/ft
Main Floor
1413 sq/ft
352 sq/ft
Upper Floor
1202 sq/ft
Primary Pitch
Secondary Pitch
Main Ceiling
Upper Ceiling Ft

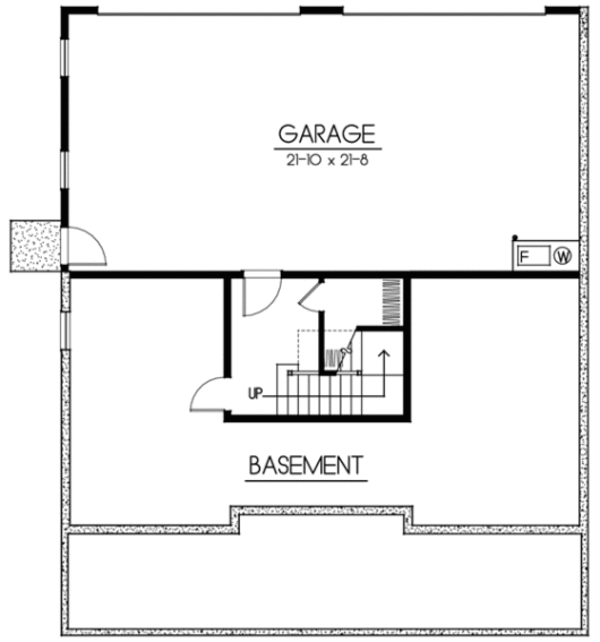

Floor Plan - Lower Floor

Craftsman Floor Plan - Lower Floor Plan #100-437

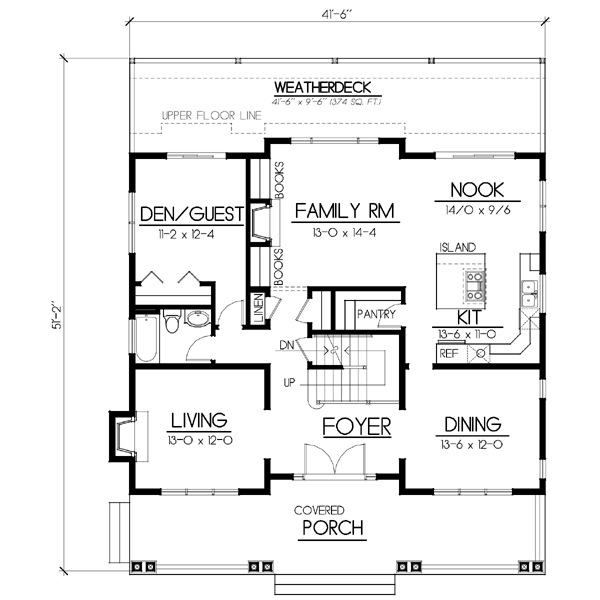

Floor Plan - Main Floor

Craftsman style house plan, main level floor plan

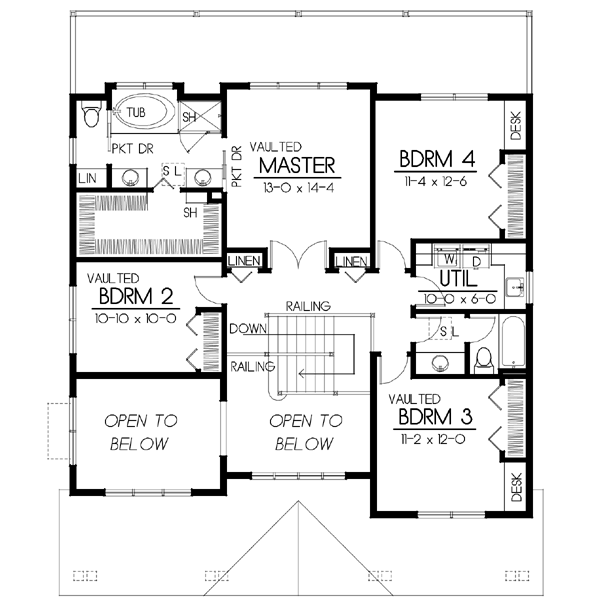

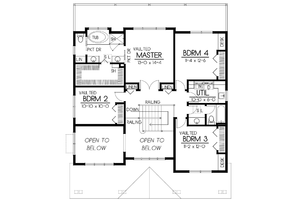

Floor Plan - Upper Floor

Craftsman Floor Plan - Upper Floor Plan #100-437
Questions about this plan? Visit today or call 1-800-913-2350

View this plan at

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
