Plan 124-703

Plan 124-703
5808 sq/ft,
3 beds,
3 baths,
162' 4" wide,
105' 2" deep

Pricing

Plan Set
PDF Print Set
$3300.00
5 Copy and PDF Set
$3950.00
PDF Master Set
$6675.00
CAD Set
$7350.00
Master Builder Package
$8050.00
Study Set
$2650.00
Foundation
Crawlspace
+$0.00
Slab
+$835.00
Basement
+$960.00
Framing
Wood 2x6
$0.00
Wood 2x4
$835.00
Right-Reading Reverse
Each
+$575.00
Additional Construction Sets
Each Additional Set
+$90.00/each
Additional Use License
Each
$2185.00
Audio Video Design
Each
$165.00
Construction Guide
Each
$39.00
Lighting Design
Each
$165.00

House Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Storage Area
Unfinished Future Space
Workshop
Carport Porte Cochere
Oversized Garage
Rear Entry Garage
Rear Garage
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
Balcony
Breezeway
Covered Front Porch
Covered Rear Porch
Unusual Shape

Styles Classifications

Craftsman
Country
Traditional

Specifications

Bonus
1899 sq/ft height 10'
First Floor
4542 sq/ft height 10'
Garage
2224 sq/ft height 10'
Second Floor
1266 sq/ft height 10'
Depth
105' 2"
Height
39'
Width
162' 4"
Primary Pitch
10:12
Roof Framing
truss/stick
Roof Load
25 psf
Main Ceiling
10'

Floor Plan - Other Floor

Craftsman Floor Plan - Other Floor Plan #124-703

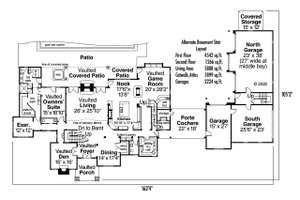

Floor Plan - Main Floor

Craftsman Floor Plan - Main Floor Plan #124-703

Floor Plan - Upper Floor

Craftsman Floor Plan - Upper Floor Plan #124-703
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/5808-square-feet-3-bedrooms-3-bathroom-northwest-house-plans-6-garage-32409

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
