Plan 434-5

2760 sq/ft,
4 beds,
3.5 baths,
57' wide,
35' deep

Pricing

Plan Set
5 Copy Set
$977.50
8 Copy Set
$1105.00
Reproducible Set
$1232.50
PDF Set
$1275.00
Single Set
$807.50
Foundation
Basement
+$0.00
Right-Reading Reverse
Each
+$255.00
Additional Construction Sets
Each Additional Set
+$42.50/each
Audio Video Design
Each
$85.00
Construction Guide
Each
$33.15
Lighting Design
Each
$170.00
Mirror Reversed Sets
Each Additional Set
+$85.00

House Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Great Room Living Room
Mud Room
Play Flex Room
Storage Area
Upstairs Laundry
Wine Cellar
Den Office Study Computer
Great Room Living Room
Mud Room
Play Flex Room
Storage Area
Upstairs Laundry
Wine Cellar
Garage Under
Side Entry Garage
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

Styles Classifications

Craftsman House Plans and Home Plan Designs
Traditional House Plans
Bungalow House Plans and Floor Plan Designs

Specifications

Decks
160 sq/ft
Garage
674 sq/ft
Lower Floor
468 sq/ft
Main Floor
1257 sq/ft
Porch
118 sq/ft
Upper Floor
1035 sq/ft
Depth
35'
Height
26'
Width
57'
Primary Pitch
8:12
Roof Framing
stick
Roof Load
Live 25lbs psf.
Roof Type
Composition
Secondary Pitch
4:12
Ceiling Details
Garage ceiling is a min. of 9'-6"
Garage Ceiling
9'
Lower Ceiling
9'
Main Ceiling
9'
Upper Ceiling Ft
8'

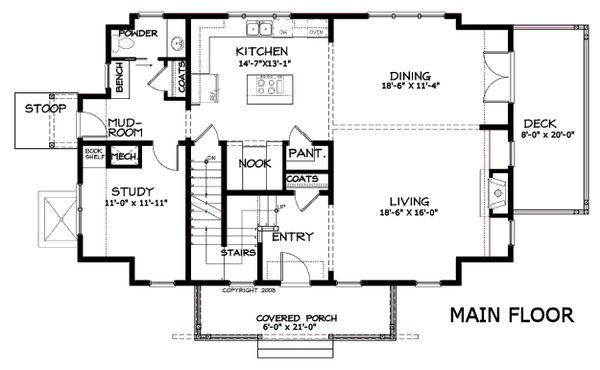

Floor Plan - Main Floor Plan

Craftsman Floor Plan - Main Floor Plan Plan #434-5

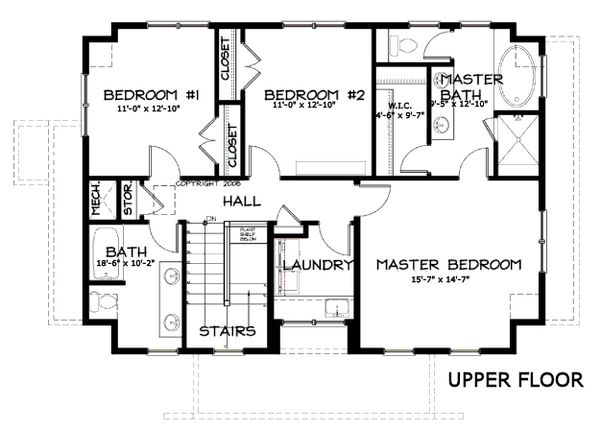

Floor Plan - Upper Floor Plan

Craftsman Floor Plan - Upper Floor Plan Plan #434-5

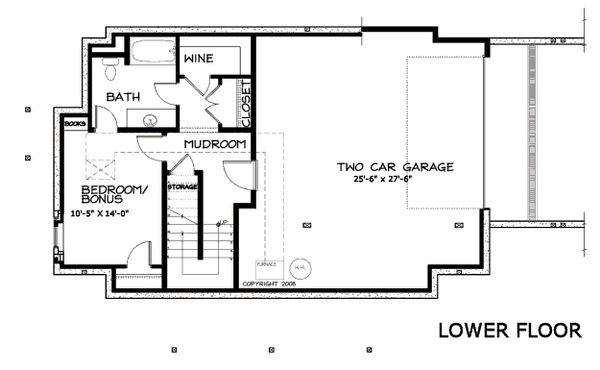

Floor Plan - Lower Floor Plan

Craftsman Floor Plan - Lower Floor Plan Plan #434-5
