Plan #17-2387

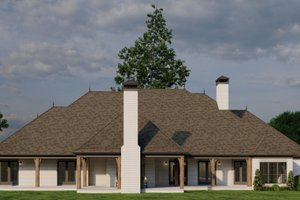

European Exterior - Front Elevation Plan #17-2387
  • 4810
  • 4 beds
  • 3.50 baths
  • 112' 9" wide
  • 112' deep


Construction Engineering Guide
Daylight Basement
Audio Video Design
Plan Set
5 Copy Set
8 Copy Set
Reproducible Set
Single Set
Home Furniture Planner
Additional Construction Sets
Each Additional Set
Lighting Design
Right-Reading Reverse

House Features

  • Main Floor Master Bedroom
  • Fireplace
  • Formal Dining Room
  • Walk In Closet
  • Main Floor Bedrooms
  • Breakfast Nook
  • Walk In Pantry Cabinet Pantry
  • Kitchen Island
  • Main Floor Laundry
  • Den Office Study Computer
  • Mud Room
  • Workshop
  • Safe Room / Hidden Room
  • Great Room Living Room
  • Open Floor Plan
  • Vaulted / Cathedral Ceilings
  • Front Entry Garage
  • Covered Front Porch
  • Outdoor Kitchen Grill
  • Outdoor Fireplace
  • Main Floor Laundry
  • Den Office Study Computer
  • Mud Room
  • Workshop
  • Safe Room / Hidden Room
  • Great Room Living Room
  • Open Floor Plan
  • Vaulted / Cathedral Ceilings

Styles Classifications

  • Traditional
  • European


Porch 1098 sq/ft
Garage 1181 sq/ft
Main Floor 4810 sq/ft
Height 36'
Depth 112'
Width 112' 9"
Primary Pitch 12:12
Roof Framing stick
Main Ceiling 10'
Floor Plan - Main Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
