Plan #430-40

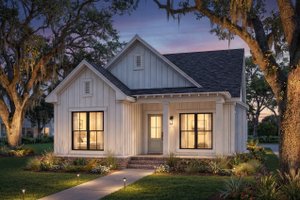

Cottage style Plan 430-40 front elevation
  • 1300
  • 3 beds
  • 2.00 baths
  • 29' wide
  • 60' deep


Material List
Plan Set
5 Copy Set
Study Set
Additional Construction Sets
Each Additional Set
Right-Reading Reverse
Mirror Reversed Sets
Each Additional Set
Daylight Basement

House Features

  • Walk In Closet
  • Main Floor Bedrooms
  • Main Floor Master Bedroom
  • Kitchen Island
  • Walk In Pantry Cabinet Pantry
  • Breakfast Nook
  • Main Floor Laundry
  • Great Room Living Room
  • Storage Area
  • Carport Porte Cochere
  • Rear Entry Garage
  • Covered Front Porch
  • Covered Rear Porch
  • Screened Porch Sunroom
  • Wheelchair Adaptable
  • Suited For Vacation Home
  • Empty Nester
  • Suited For Sloping Lot
  • Suited For Narrow Lot
  • Zero Lot Lines
  • Suited For View Lot
  • Main Floor Laundry
  • Great Room Living Room
  • Storage Area

Styles Classifications

  • Cottage


Main Floor 1300 sq/ft
Porch 232 sq/ft
Storage 47 sq/ft
Garage 484 sq/ft
Depth 60'
Width 29'
Height 22'
Roof Framing stick
Secondary Pitch 4:12
Roof Load 40
Primary Pitch 10:12
Roof Type gables
Garage Ceiling 9'
Main Ceiling 9'

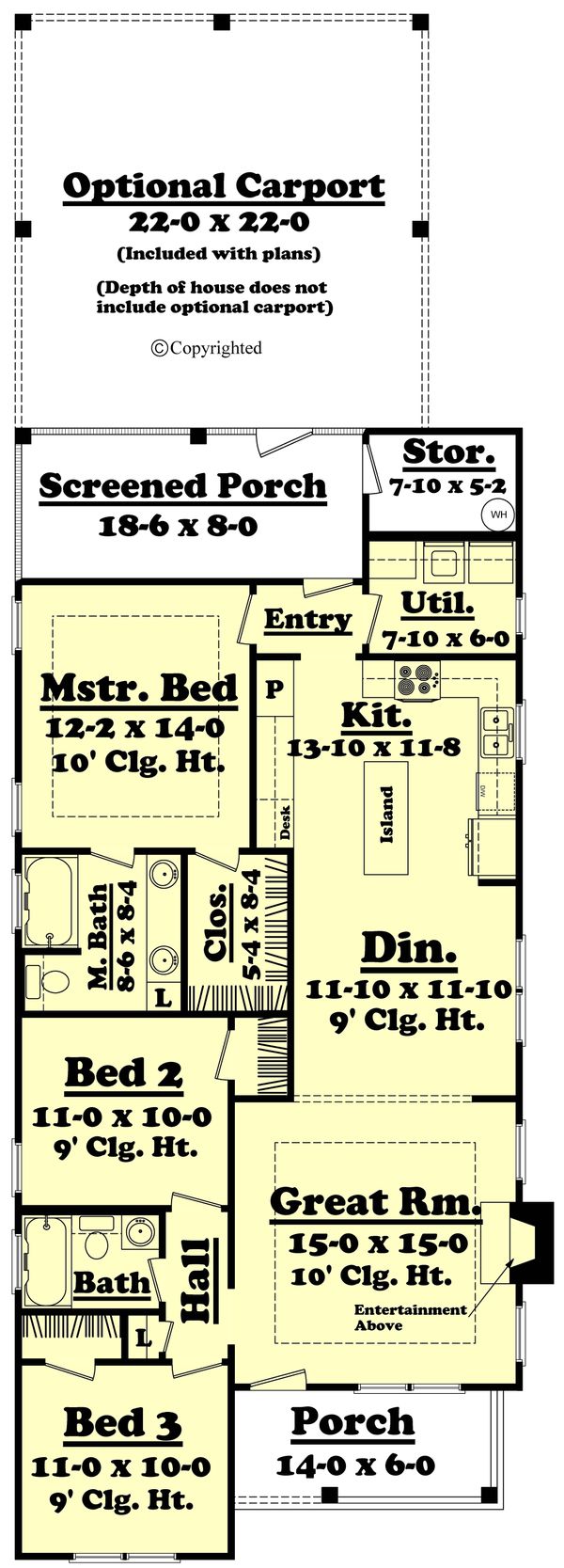

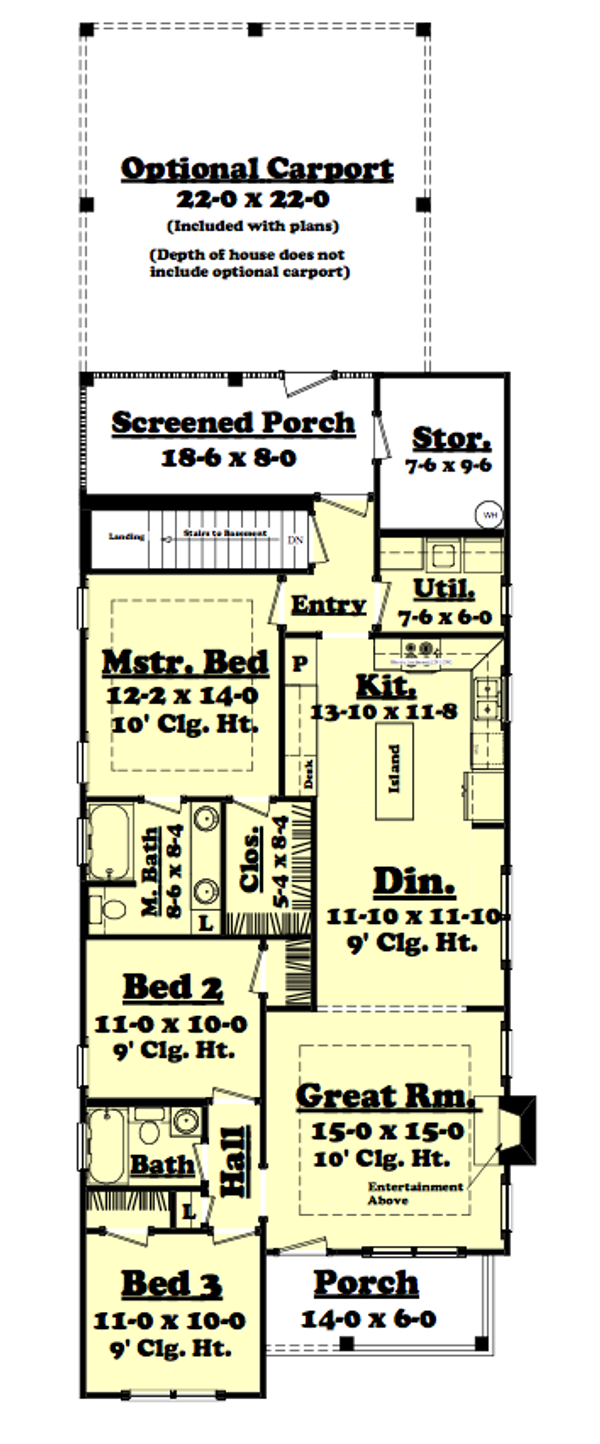

Floor Plan - Main Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
