Plan #487-1

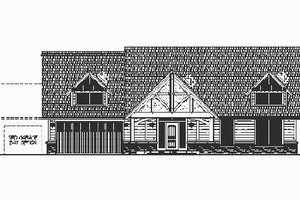

Craftsman Exterior - Front Elevation Plan #487-1
  • 2212
  • 3 beds
  • 2.00 baths
  • 60' wide
  • 50' deep


Right-Reading Reverse
Plan Set
Reproducible Set
Single Set

House Features

  • Main Floor Bedrooms
  • Walk In Closet
  • Main Floor Master Bedroom
  • Breakfast Nook
  • Walk In Pantry Cabinet Pantry
  • Eating Bar
  • Master Sitting Area
  • Storage Area
  • Main Floor Laundry
  • Mud Room
  • Great Room Living Room
  • Wet Bar
  • Den Office Study Computer
  • Tandem Garage
  • Front Entry Garage
  • Oversized Garage
  • Friend S Entry
  • Covered Front Porch
  • Covered Rear Porch
  • Grill Deck Sundeck
  • Economical To Build
  • Suited For Vacation Home
  • Wheelchair Adaptable
  • Suited For View Lot
  • Suited For Sloping Lot
  • Suited For Corner Lot
  • Master Sitting Area
  • Storage Area
  • Main Floor Laundry
  • Mud Room
  • Great Room Living Room
  • Wet Bar
  • Den Office Study Computer

Styles Classifications

  • Bungalow
  • Craftsman


Porch 137 sq/ft
Garage 486 sq/ft
Patios 220 sq/ft
Storage 22 sq/ft
Main Floor 2212 sq/ft
Width 60'
Depth 50'
Height 26'
Primary Pitch 8:12
Roof Type Metal or Comp. Slate Shingles
Roof Framing Manufactured Wood Trusses
Roof Load 40# Total
Secondary Pitch 12:12
Ceiling Details Vaulted ceilings at Porch, Foyer, Great Room and Outdoor Living Option; False box beams at Great Room; Light well dormers at Bedroom 3 and Garage; Trayed ceilings with crown molding to 10 feet high at Dining and Master Bedroom.
Garage Ceiling 10'
Main Ceiling 9'
Floor Plan - Main Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
