Plan 508-1

2415 sq/ft,
2 beds,
2 baths,
105' wide,
23' deep

Pricing

Plan Set
5 Copy Set
$2500.00
PDF Set
$2500.00
Reproducible Set
$2500.00
CAD Set
$3500.00
Foundation
Slab
+$0.00
Additional Construction Sets
Each Additional Set
+$100.00/each
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00
Home Furniture Planner
Each
$19.00
Lighting Design
Each
$100.00
Mirror Reversed Sets
Each Additional Set
+$0.00

House Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Island
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Suited For Narrow Lot
Suited For View Lot
Covered Front Porch
Economical To Build
Suited For Vacation Home
Wheelchair Adaptable

Styles Classifications

Ranch House Plans and Floor Plan Designs

Specifications

Main Floor
2415 sq/ft
Porch
997 sq/ft
Depth
23'
Height
15'
Width
105'
Primary Pitch
4:12
Roof Framing
Steel / Foam Panel
Roof Type
Asphalt Shingle
Secondary Pitch
2:12
Ceiling Details
Vaulted Ceiling at Great Room and Master Bedroom.All other rooms have 10'-0" Ceiling Height.
Lower Ceiling
10'
Main Ceiling
14'

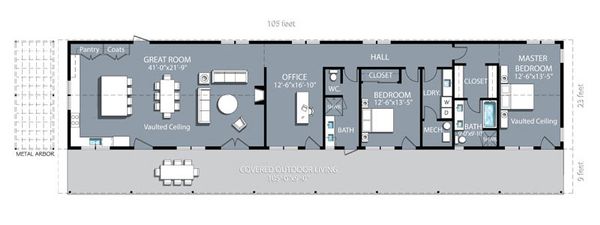

Floor Plan - Main Floor Plan

Ranch Floor Plan - Main Floor Plan Plan #508-1
Logo
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

You can view this plan at https://www.houseplans.com/plan/2415-square-feet-2-bedrooms-2-bathroom-ranch-house-plans-0-garage-36068

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
