Plan 928-12

5274 sq/ft,
4 beds,
4.5 baths,
146' 8" wide,
97' deep

Pricing

Plan Set
PDF Set
$1995.00
CAD Set
$3995.00
Foundation
Daylight Basement
+$0.00
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00
Home Furniture Planner
Each
$19.00
Lighting Design
Each
$200.00
Right-Reading Reverse
Each
+$195.00

House Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Play Flex Room
Sunroom
Wet Bar
Wine Cellar
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Play Flex Room
Sunroom
Wet Bar
Wine Cellar
Oversized Garage
Screened Porch

Styles Classifications

Country House Plans

Specifications

Basement Unfinished
3317 sq/ft height 10' 3"
Bonus
761 sq/ft
First Floor
3910 sq/ft height 11' 5"
Garage
1020 sq/ft
Second Floor
1364 sq/ft height 8' 1"
Depth
97'
Height
33' 6"
Width
146' 8"
Primary Pitch
8:12
Roof Framing
Truss
Roof Type
Metal
Secondary Pitch
14:12
Lower Ceiling
10' 3"
Main Ceiling
11' 5"
Upper Ceiling Ft
8' 1"

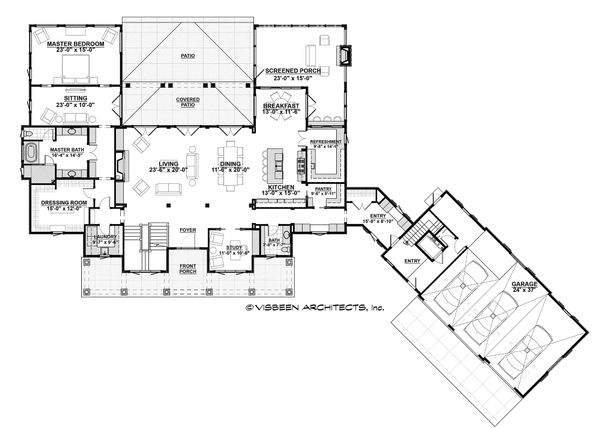

Floor Plan - Main Floor Plan

Country Floor Plan - Main Floor Plan Plan #928-12

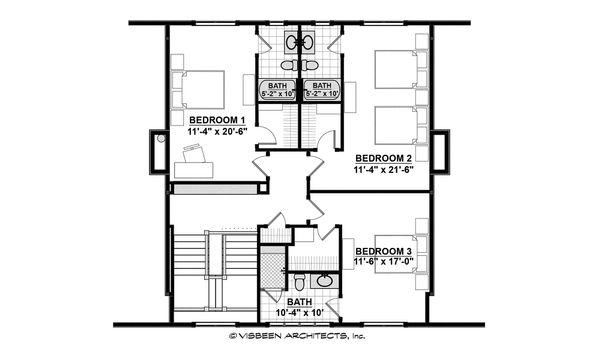

Floor Plan - Upper Floor Plan

Country Floor Plan - Upper Floor Plan Plan #928-12

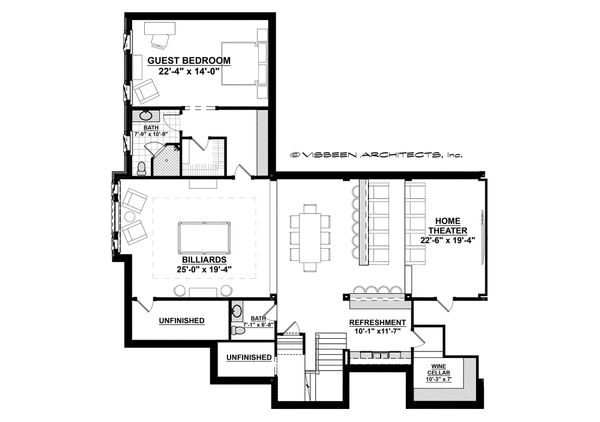

Floor Plan - Lower Floor Plan

Country Floor Plan - Lower Floor Plan Plan #928-12

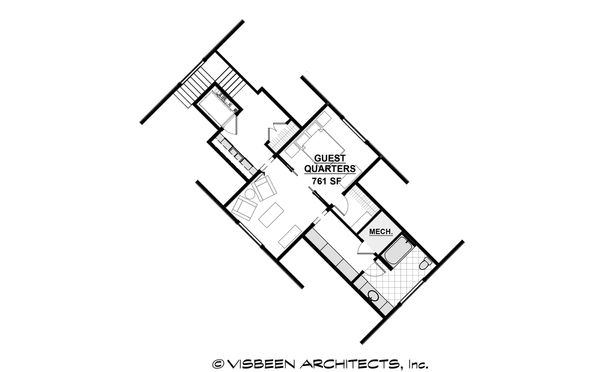

Floor Plan - Other Floor Plan

Country Floor Plan - Other Floor Plan Plan #928-12
Logo
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

You can view this plan at https://www.houseplans.com/plan/5274-square-feet-4-bedroom-4-5-bathroom-3-garage-country-40463

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
