Plan 27-538

8364 sq/ft,
6 beds,
6 baths,
89' 2" wide,
183' 6" deep

Pricing

Plan Set
CAD Set
$10285.70
PDF Set
$10285.70
Reproducible Set
$10285.70
Foundation
Pier
+$0.00
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00
Lighting Design
Each
$200.00

House Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Play Flex Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Wet Bar
Wine Cellar
Workshop
Detached Garage
Front Entry Garage
Garage Under
Oversized Garage
Side Entry Garage
Tandem Garage
Suited For Corner Lot
Suited For View Lot
Balcony
Breezeway
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Jack & Jill Bath
Wheelchair Adaptable

Styles Classifications

Mediterranean

Specifications

Garage
5192 sq/ft
Lower Floor
265 sq/ft
Main Floor
5698 sq/ft
Patios
4666 sq/ft
Porch
1680 sq/ft
Upper Floor
2401 sq/ft
Depth
183' 6"
Height
40'
Width
89' 2"
Primary Pitch
5:12
Roof Framing
Manufactured trusses
Roof Type
Cement Tile
Secondary Pitch
6:12
Ceiling Details
coffered, flat, coffer 2/ beams, double coffer, radial coffer, dome, flat/Vault, flat
Main Ceiling
10' 8"

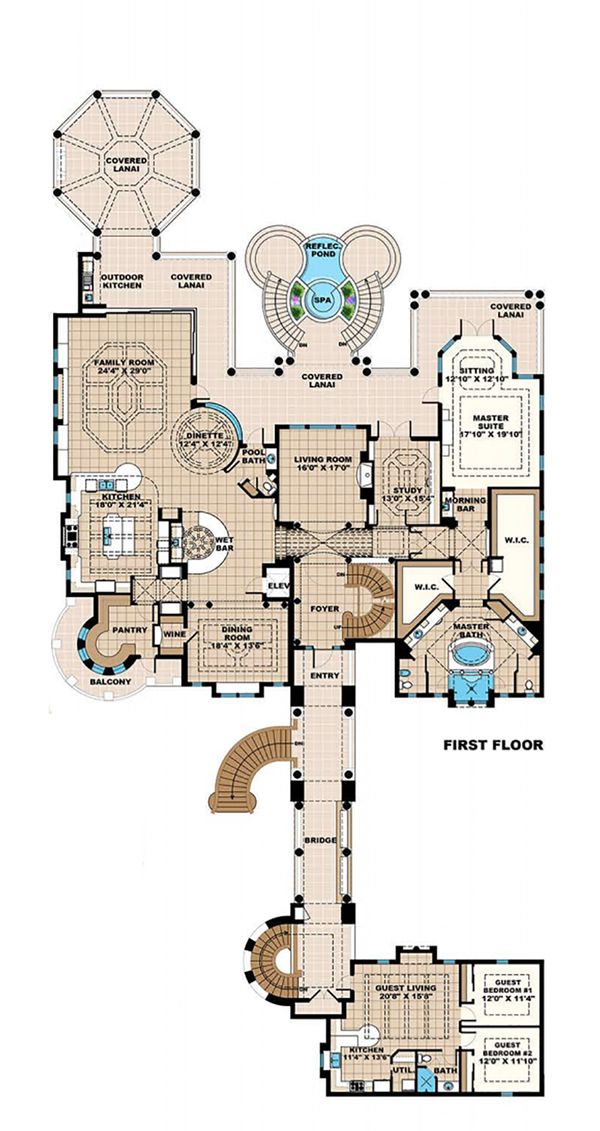

Floor Plan - Main Floor

Mediterranean Floor Plan - Main Floor Plan #27-538

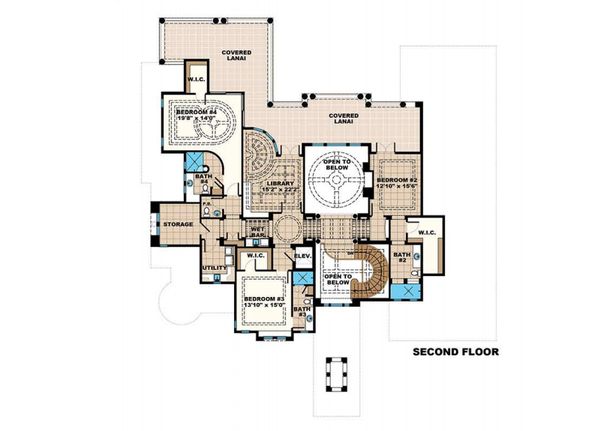

Floor Plan - Upper Floor

Mediterranean Floor Plan - Upper Floor Plan #27-538

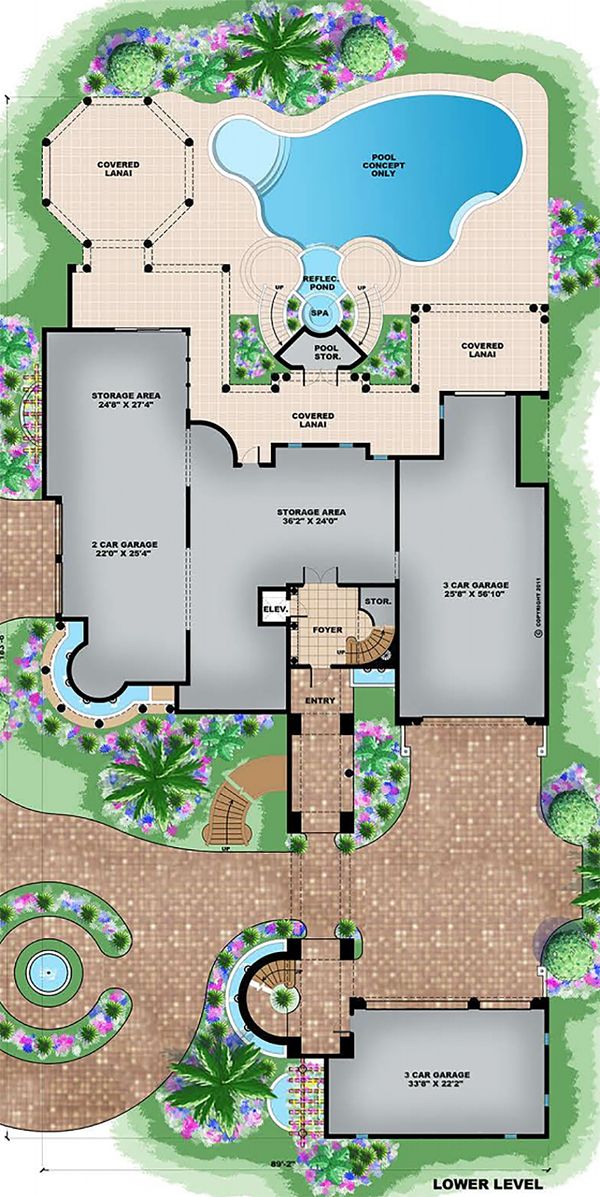

Floor Plan - Other Floor

Mediterranean Floor Plan - Other Floor Plan #27-538
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/20075-square-feet-6-bedroom-6-bathroom-6-garage-mediterranean-40691

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
