Plan 132-565

11000 sq/ft,
5 beds,
5 baths,
132' wide,
132' deep

Pricing

Plan Set
PDF Set
$4800.00
CAD Set
$7300.00
Foundation
Daylight Basement
+$0.00
Framing
Wood 2x6
$0.00
Right-Reading Reverse
Each
+$200.00
Additional Construction Sets
Each Additional Set
+$50.00/each
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00
Lighting Design
Each
$200.00

House Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Open Floor Plan
Storage Area
Upstairs Laundry
Vaulted / Cathedral Ceilings
Wine Cellar
Workshop
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Open Floor Plan
Storage Area
Upstairs Laundry
Vaulted / Cathedral Ceilings
Wine Cellar
Workshop
Carport Porte Cochere
Detached Garage
Front Entry Garage
Rear Entry Garage
Side Entry Garage
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Fireplace
Wrap Around Porch
Wheelchair Adaptable

Styles Classifications

Craftsman
Colonial
Victorian

Specifications

Basement Living
3105 sq/ft height 10'
Bonus
585 sq/ft
First Floor
3886 sq/ft height 10'
Garage
3280 sq/ft
Second Floor
3899 sq/ft height 9'
Storage
1013 sq/ft
Third Floor
110 sq/ft height 8'
Depth
132'
Height
33'
Width
132'
Primary Pitch
8:12
Roof Framing
Combination Truss/Conventional
Roof Type
Composition
Secondary Pitch
6:12

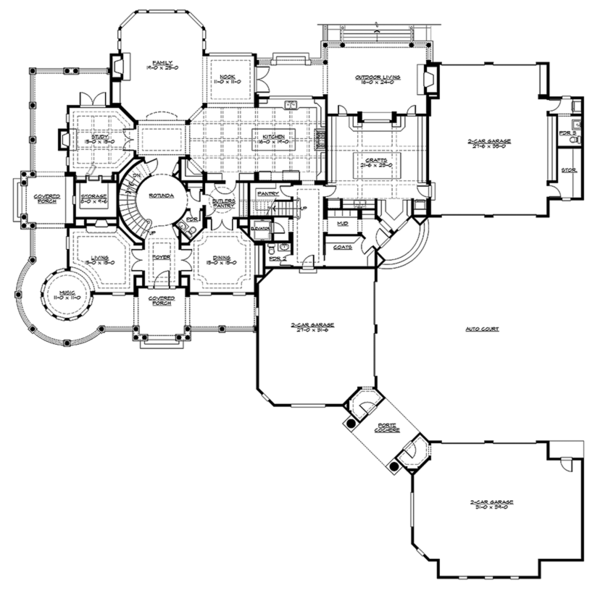

Floor Plan - Main Floor

Craftsman Floor Plan - Main Floor Plan #132-565

Floor Plan - Upper Floor

Craftsman Floor Plan - Upper Floor Plan #132-565

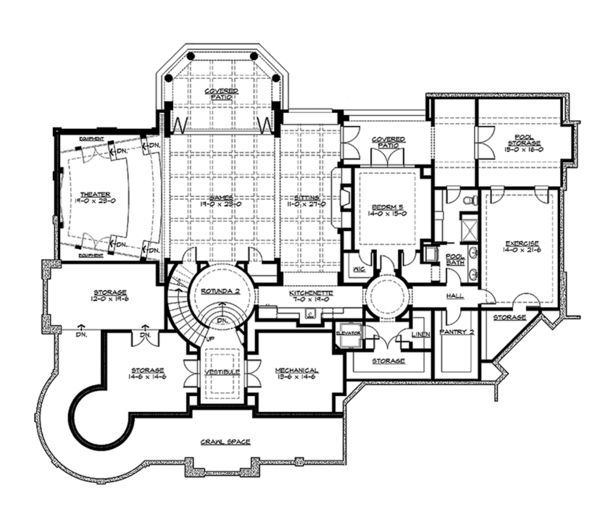

Floor Plan - Lower Floor

Craftsman Floor Plan - Lower Floor Plan #132-565

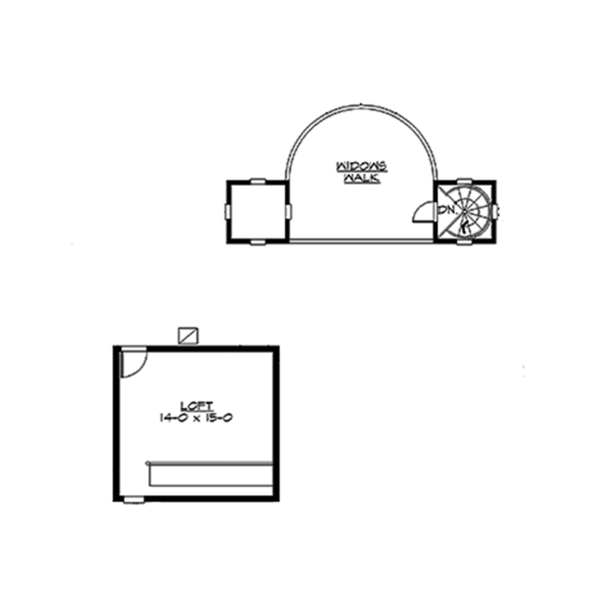

Floor Plan - Other Floor

Craftsman Floor Plan - Other Floor Plan #132-565
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/11000-square-feet-5-bedroom-5-00-bathroom-6-garage-craftsman-victorian-colonial-traditional-sp123397
