Plan 1066-69

4310 sq/ft,
5 beds,
5 baths,
49' 2" wide,
60' deep

Pricing

Plan Set
5 Copy Set
$1734.00
8 Copy Set
$1839.00
Reproducible Set
$1839.00
PDF Set
$2250.00
CAD Set
$4575.00
Single Set
$1524.00
Foundation
Crawlspace
+$0.00
Slab
+$300.00
Framing
Wood 2x6
$0.00
Right-Reading Reverse
Each
+$350.00
Additional Construction Sets
Each Additional Set
+$125.00/each
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00
Lighting Design
Each
$200.00
Mirror Reversed Sets
Each Additional Set
+$350.00

House Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Family Room Keeping Room
Mud Room
Upstairs Laundry
Den Office Study Computer
Family Room Keeping Room
Mud Room
Upstairs Laundry
Front Entry Garage
Covered Front Porch
Covered Rear Porch

Styles Classifications

Contemporary
Modern
Log

Specifications

Garage
501 sq/ft
Main Floor
2146 sq/ft
Patios
212 sq/ft
Porch
153 sq/ft
Upper Floor
2164 sq/ft
Depth
60'
Height
31' 4"
Width
49' 2"
Primary Pitch
5/12
Roof Framing
Trusses
Roof Load
25 PSF
Roof Type
Composition Shingles
Ceiling Details
Entry foyer ceiling is open to above.
Garage Ceiling
11' 6"
Main Ceiling
10'
Upper Ceiling Ft
9'

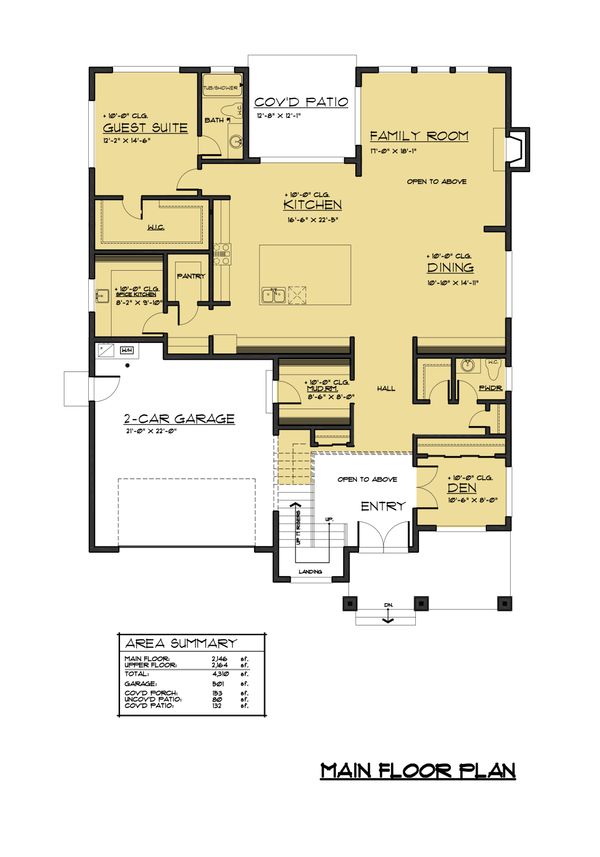

Floor Plan - Main Floor

Contemporary Floor Plan - Main Floor Plan #1066-69

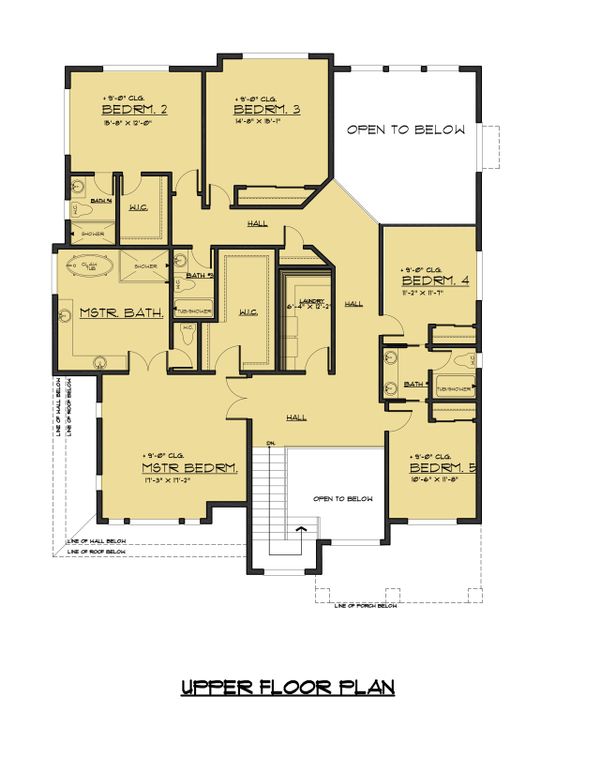

Floor Plan - Upper Floor

Contemporary Floor Plan - Upper Floor Plan #1066-69
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/4310-square-feet-5-bedroom-5-bathroom-1-garage-contemporary-modern-log-sp257065

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
