Plan 892-32

3836 sq/ft,
4 beds,
4.5 baths,
93' 1" wide,
98' 3" deep

Pricing

Plan Set
PDF Set
$1995.00
5 Copy Set
$2095.00
8 Copy Set
$2195.00
Reproducible Set
$2195.00
CAD Set
$2795.00
Study Set
$995.00
Foundation
Crawlspace
+$0.00
Framing
Wood 2x6
$0.00
Right-Reading Reverse
Each
+$150.00
Additional Construction Sets
Each Additional Set
+$40.00/each
Additional Use License
Each
$895.00
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00

House Features

2 Master Suites
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Play Flex Room
Wet Bar
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Play Flex Room
Wet Bar
Rear Garage
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
Courtyard
Outdoor Kitchen Grill
Additional Half Bath
Suited For Vacation Home

Styles Classifications

Modern
Contemporary

Specifications

Garage
1061 sq/ft
Main Floor
3210 sq/ft
Upper Floor
626 sq/ft
Depth
98' 3"
Height
22' 4"
Width
93' 1"
Primary Pitch
flat
Roof Framing
truss/stick/tji
Roof Load
25 psf snow, 30 psf dead load
Ceiling Details
flat. great room, kitchen, dining @ 14'
Garage Ceiling
10' 4"
Main Ceiling
10'
Upper Ceiling Ft
9'

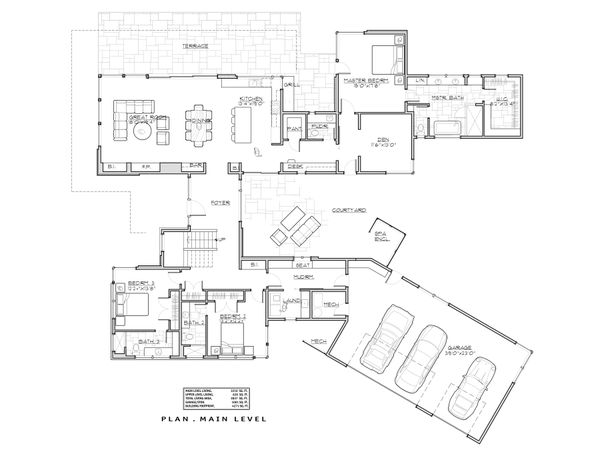

Floor Plan - Main Floor

Modern Floor Plan - Main Floor Plan #892-32

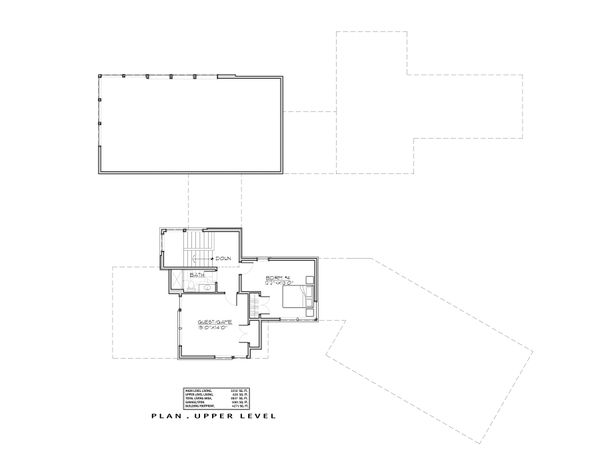

Floor Plan - Upper Floor

Modern Floor Plan - Upper Floor Plan #892-32
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/3837-square-feet-4-bedroom-4-5-bathroom-3-garage-modern-contemporary-sp270794

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
