Plan 20-2387

2776 sq/ft,
5 beds,
3.5 baths,
40' wide,
57' deep

Pricing

Plan Set
Master Builder Package
$690.00
PDF Set
$1055.00
CAD Set
$1850.00
Foundation
Walk Out Basement
+$0.00
Framing
Wood 2x6
$195.00
Right-Reading Reverse
Each
+$195.00

House Features

Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Island
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Wine Cellar
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Wine Cellar
Front Entry Garage
Suited For Sloping Lot
Covered Front Porch
Economical To Build

Styles Classifications

Cottage
Craftsman

Specifications

Garage
473 sq/ft
Lower Floor
878 sq/ft
Main Floor
1596 sq/ft
Upper Floor
302 sq/ft
Depth
57'
Height
23' 9"
Width
40'
Primary Pitch
6/12
Roof Framing
Stick

Floor Plan - Main Floor

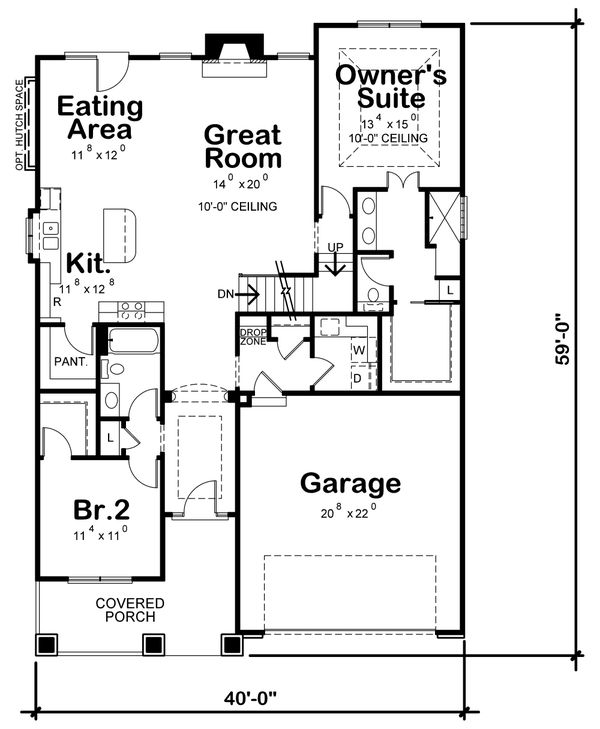

Cottage Floor Plan - Main Floor Plan #20-2387

Floor Plan - Upper Floor

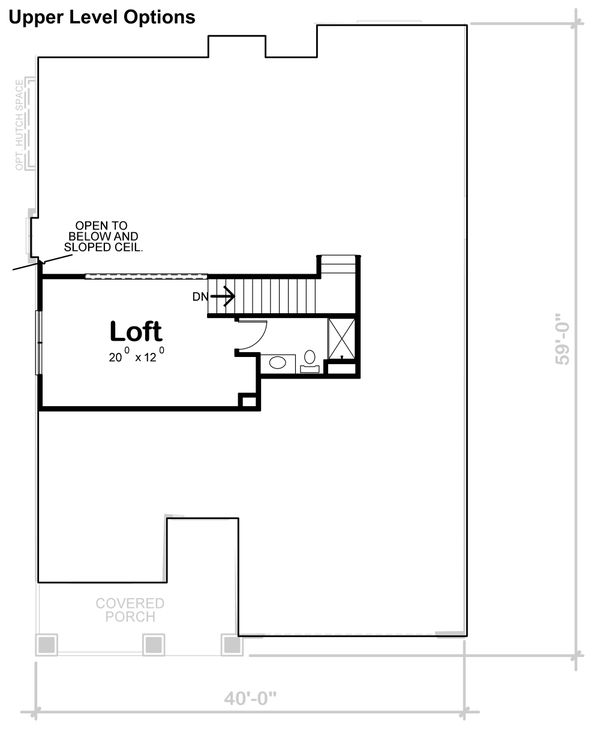

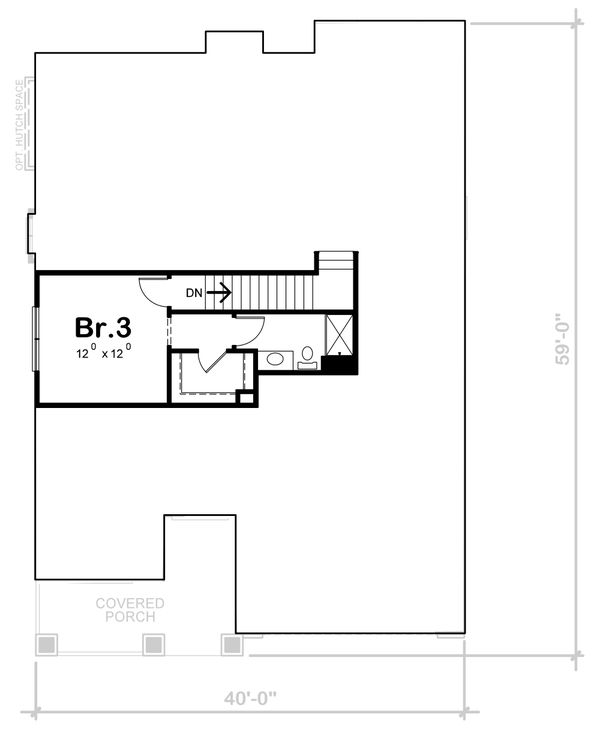

Cottage Floor Plan - Upper Floor Plan #20-2387

Floor Plan - Lower Floor

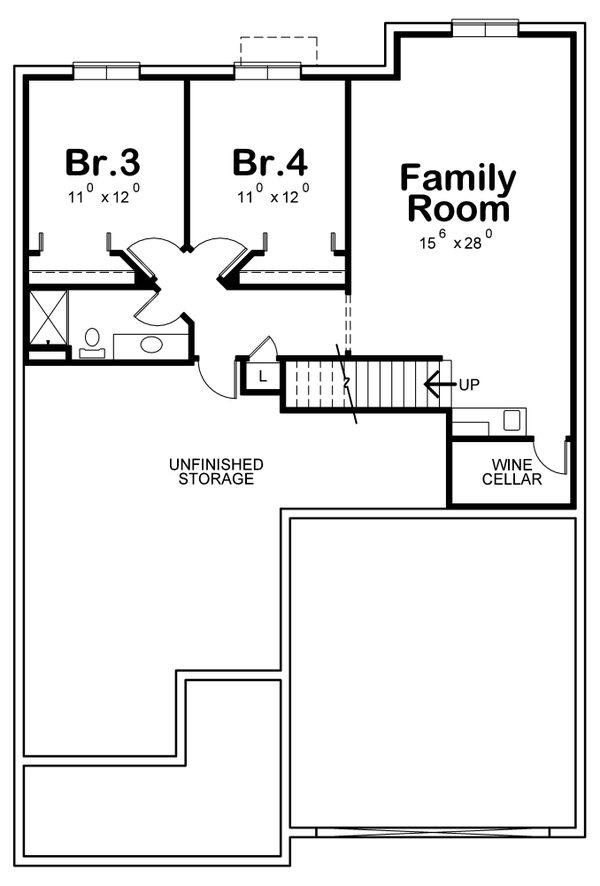

Cottage Floor Plan - Lower Floor Plan #20-2387

Floor Plan - Other Floor

Cottage Floor Plan - Other Floor Plan #20-2387

Floor Plan - Other Floor

Cottage Floor Plan - Other Floor Plan #20-2387
