Plan 23-2751

4270 sq/ft,
5 beds,
2.5 baths,
64' wide,
40' deep


Plan Set
Reproducible Set
Three Copy and PDF Set
Floating Slab
Monolithic Slab
Wood 2x6
Right-Reading Reverse
Additional Construction Sets
Each Additional Set
Audio Video Design
Construction Guide

House Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Great Room Living Room
Master Sitting Area
Play Flex Room
Storage Area
Upstairs Laundry
Wine Cellar
Front Entry Garage
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Jack & Jill Bath

Styles Classifications



686 sq/ft
Lower Floor
1486 sq/ft
Main Floor
1486 sq/ft
Upper Floor
1298 sq/ft
36' 2"
Primary Pitch
Roof Type
Secondary Pitch
Garage Ceiling
10' 10"
Lower Ceiling
8' 2"
Main Ceiling
9' 2"
Upper Ceiling Ft
8' 2"

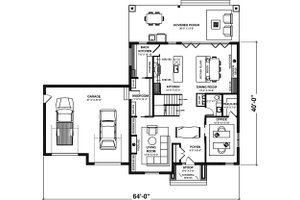

Floor Plan - Main Floor

Farmhouse Floor Plan - Main Floor Plan #23-2751

Floor Plan - Upper Floor

Farmhouse Floor Plan - Upper Floor Plan #23-2751

Floor Plan - Lower Floor

Farmhouse Floor Plan - Lower Floor Plan #23-2751
Questions about this plan? Visit today or call 1-800-913-2350

View this plan at

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
