Plan 1064-184

3799 sq/ft,
4 beds,
3 baths,
94' 10" wide,
49' 8" deep

Pricing

Plan Set
PDF Set
$1350.00
5 Copy Set
$1525.00
5 Copy and PDF Set
$1600.00
CAD Set
$2600.00
Foundation
Basement
+$0.00
Crawlspace
+$295.00
Slab
+$295.00
Daylight Basement
+$395.00
Walk Out Basement
+$395.00
Framing
Wood 2x6
$0.00
Wood 2x4
$200.00
Right-Reading Reverse
Each
+$245.00
Audio Video Design
Each
$165.00
Comprehensive Material List
Each
$495.00
Construction Guide
Each
$39.00

House Features

Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Island
Great Room Living Room
Main Floor Laundry
Storage Area
Front Entry Garage
Covered Front Porch
Covered Rear Porch

Styles Classifications

Country
Craftsman
Ranch

Specifications

Bonus
439 sq/ft
Decks
384 sq/ft
Garage
986 sq/ft
Lower Floor
1904 sq/ft
Main Floor
1895 sq/ft
Patios
517 sq/ft
Porch
275 sq/ft
Depth
49' 8"
Height
23'
Width
94' 10"
Primary Pitch
9/12
Roof Framing
Truss/Stick
Roof Load
30 psf
Roof Type
Shingles
Secondary Pitch
10/12
Garage Ceiling
10' 3"
Lower Ceiling
9'
Main Ceiling
9' 1"

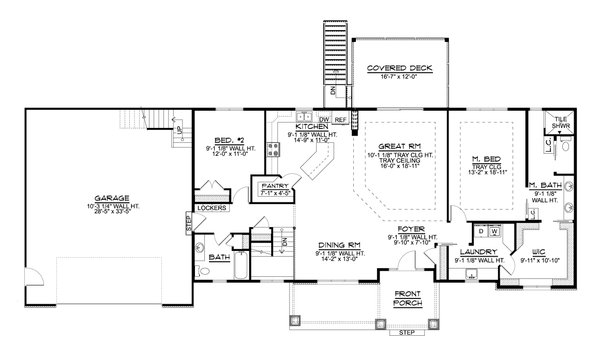

Floor Plan - Main Floor

Country Floor Plan - Main Floor Plan #1064-184

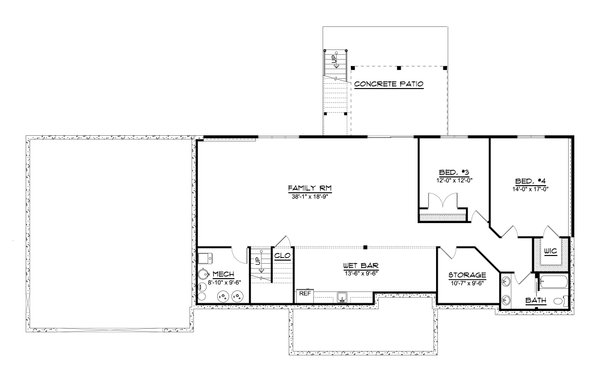

Floor Plan - Lower Floor

Country Floor Plan - Lower Floor Plan #1064-184
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/3799-square-feet-5-bedroom-3-bathroom-2-garage-country-sp296305

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
