Plan 1057-37

2836 sq/ft,
3 beds,
2.5 baths,
65' wide,
41' 2" deep

Pricing

Plan Set
PDF Set
$2200.00
CAD Set
$2300.00
CAD Single Build
$2300.00
CAD and PDF Set
$2400.00
CAD Unlimited Build
$5000.00
PDF Unlimited Build
$5000.00
Foundation
Crawlspace
+$0.00
Basement
+$500.00
Daylight Basement
+$500.00
Slab
+$500.00
Walk Out Basement
+$500.00
Framing
Wood 2x6
$0.00
Wood 2x4
$500.00
Right-Reading Reverse
Each
+$500.00
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00
Unlimited Use License
Each
$5000.00

House Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Great Room Living Room
Mud Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Front Entry Garage
Suited For Narrow Lot
Covered Front Porch
Additional Half Bath

Styles Classifications

Traditional

Specifications

Basement
0 sq/ft
Bonus
240 sq/ft
Garage
540 sq/ft
Main Floor
1652 sq/ft
Porch
24 sq/ft
Storage
120 sq/ft
Upper Floor
1184 sq/ft
Depth
41' 2"
Height
30'
Width
65'
Primary Pitch
7:12
Roof Framing
trusses
Roof Type
asphalt shingles
Secondary Pitch
5:12
Bonus Ceiling
8'
Ceiling Details
VAULTED GREAT ROOM AND VAULTED MASTER BEDROOM
Main Ceiling
10'
Upper Ceiling Ft
8'

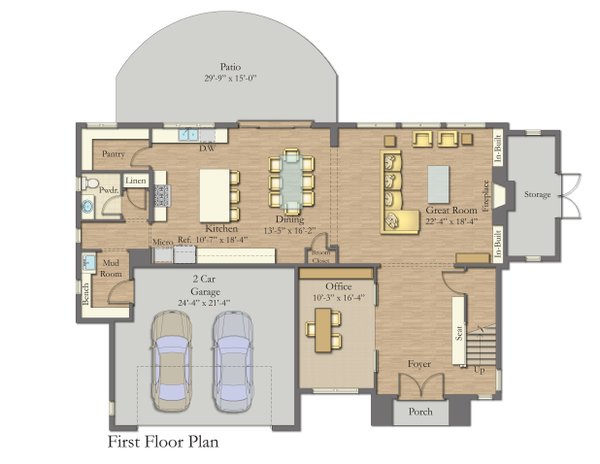

Floor Plan - Main Floor

Traditional Floor Plan - Main Floor Plan #1057-37

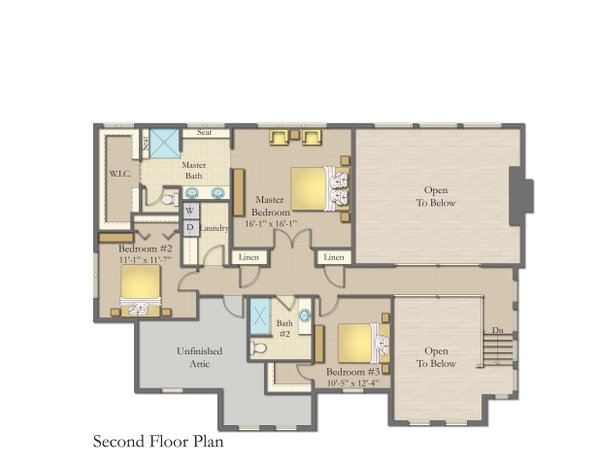

Floor Plan - Upper Floor

Traditional Floor Plan - Upper Floor Plan #1057-37
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/2836-square-feet-3-bedroom-2-5-bathroom-2-garage-contemporary-traditional-craftsman-farmhouse-sp298589

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
