Plan 1084-5

Plan 1084-5
2448 sq/ft,
3 beds,
3 baths,
60' wide,
34' deep

Pricing

Plan Set
5 Copy Set
$1049.00
PDF Set
$1049.00
5 Copy and PDF Set
$1349.00
Foundation
Basement
+$0.00
Framing
Concrete Masonry Unit and Wood 2x6
$0.00
Wood 2x6
$0.00
Audio Video Design
Each
$165.00
Comprehensive Material List
Each
$295.00
Construction Guide
Each
$39.00
Lighting Design
Each
$165.00

House Features

Main Floor Master Bedroom
Walk In Closet
Eating Bar
Walk In Pantry Cabinet Pantry
Great Room Living Room
Main Floor Laundry
Front Entry Garage
Split Garage
Covered Front Porch
Unusual Shape

Styles Classifications

Contemporary
Modern

Specifications

Basement
1224 sq/ft
Garage
672 sq/ft
Main Floor
1224 sq/ft
Depth
34'
Height
19'
Width
60'
Primary Pitch
3/12
Roof Framing
Pre-engineered Trusses
Roof Load
Per Local Code Requirements
Roof Type
Per Truss Manufacturer
Ceiling Details
10ft ceiling height over Great Room & Kitchen
Garage Ceiling
11'
Lower Ceiling
8' 9"
Main Ceiling
9'

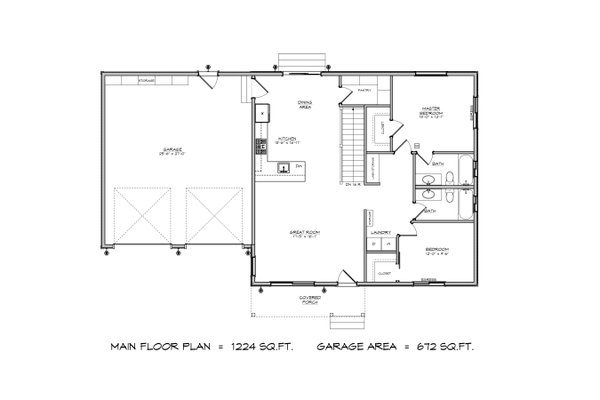

Floor Plan - Main Floor

Contemporary Floor Plan - Main Floor Plan #1084-5

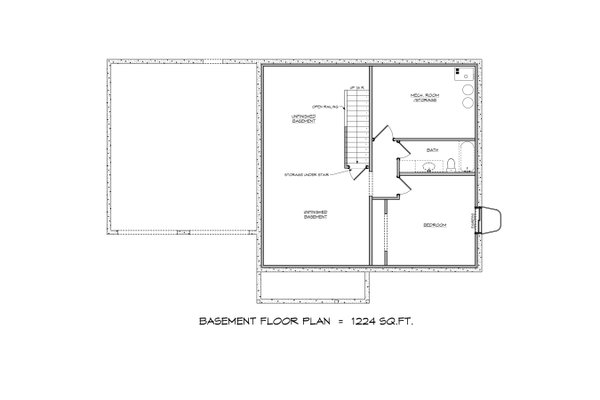

Floor Plan - Lower Floor

Contemporary Floor Plan - Lower Floor Plan #1084-5
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/2448-square-feet-3-bedroom-3-bathroom-2-garage-contemporary-modern-traditional-sp303079

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
