Plan #126-159

Key Specs


  • 1 Bedroom

  • 2 Bathrooms

  • 2 Floors

  • 3 Garage

  • 1115 sq ft

Plan Description

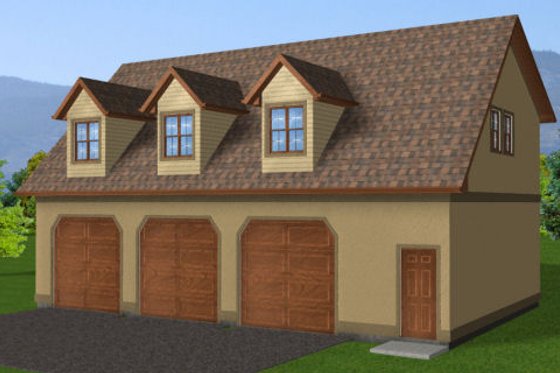

This triple car garage has all the benefits of three 9 foot bay doors combined with the added bonus of living quarters over. The great room in the loft gives it an open feeling, making the living area very inviting.

Full Specs & Features

Basic Features

Garage Stalls : 3
Potential Bedrooms : 0
Baths : 2
Stories : 2
Bedrooms : 1

Dimension

Depth : 28'
Width : 44'
Height : 28'

Area

Garage Sq Ft : 1232 sq ft
Total Sq Ft : 1115 sq ft
Main Floor Sq Ft : 1115 sq ft

Ceiling

Garage Ceiling Ft : 12'
Main Ceiling Ft : 8'

Roof

Roof Framing : stick
Roof Load : 65

Exterior Wall Framing

Insulation : R-22
Exterior Wall Finish : Stucco
Framing : 2"x6"

Garage Features

Oversized Garage
Split Garage
Front Entry Garage

Code Compliance

Irc 2006
Nbcc

Structural Information Provided

Foundation Drawing
Structural Notes
Structural Roof Framing
Structural 3rd Floor Framing
Structural Calculations
Structural 2nd Floor Framing
Structural 1st Floor Framing

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

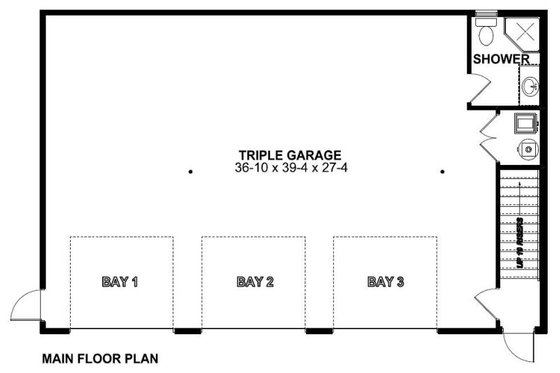

Lower Floor Plan
Saved! Traditional Style House Plan - 1 Beds 2 Baths 1115 Sq/Ft Plan #126-159 Lower Floor Plan - Houseplans.com

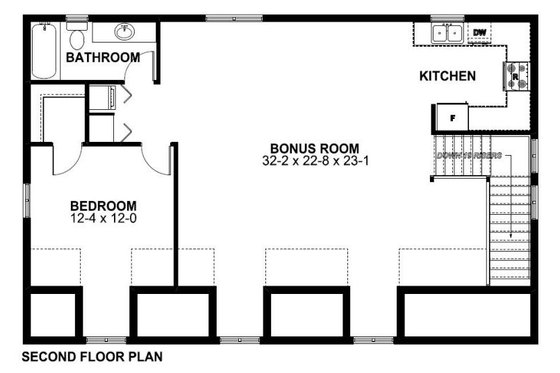

Main Floor Plan
Saved! Traditional Style House Plan - 1 Beds 2 Baths 1115 Sq/Ft Plan #126-159 Main Floor Plan - Houseplans.com

What's included in this plan set

  • Floor Plans Including electrical
  • Foundation Plan
  • Cross Sections and other detail sections when required
  • Cabinet and Stair Details

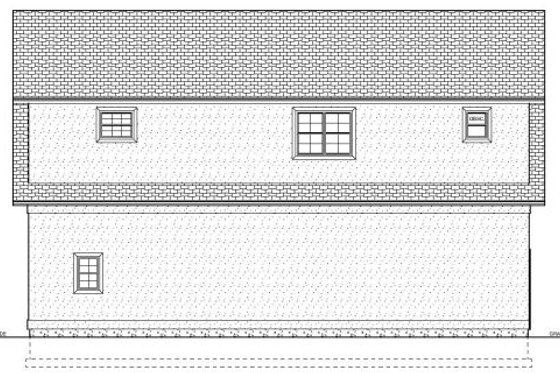

  • Exterior Elevations - All four sides
  • Cover Page with artists rendering
  • Misc. Construction and Code Notes

Pricing

Plan Set Price

5 Copy Set
$575.00
8 Copy Set
$675.00
Reproducible Set
$675.00
CAD Set
$1150.00
Single Set
$470.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $45.00/each

Mirror Reverse Sets $50.00/each

Right-Reading Reverse $150.00

Material List $100.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
