  • Plan 46-469
  • 1597 sq ft
  • 3 beds
  • 2.00 baths
  • 60' wide
  • 50' deep
more details
Houzz
Email Print

Plans

Lower Floor Plan
Saved! Houseplans.com Traditional Lower Floor Plan Plan #46-469

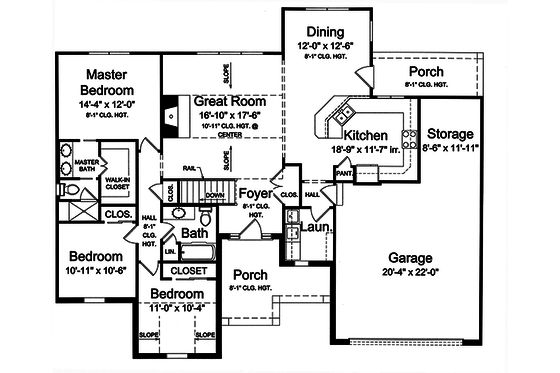

Main Floor Plan
Saved! Houseplans.com Traditional Main Floor Plan Plan #46-469

Specifications

Plan Styles
Country
Traditional
Basic Features
Baths
2.00
Garage Stalls
2
Potential Bedrooms
0
Bedrooms
3
Stories
1
Ceiling
Main Ceiling Ft
8'
Roof
Primary Pitch
8:12
Exterior Wall Framing
Framing
2"x4"
Area
Total Sq Ft
1597 sq ft
Main Floor Sq Ft
1597 sq ft
Basement Sq Ft
1597 sq ft
Porch Sq Ft
254 sq ft
Garage Sq Ft
549 sq ft
Lower Floor Sq Ft
1597 sq ft
Designer Notes
Included

  • ELEVATIONS: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • FOUNDATION PLANS: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall)
  • FLOOR PLANS: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown
  • ROOF PLAN: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
  • MISCELLANEOUS DETAILS: Foundation reinforcing detail show size of footing and foundation wall, size and spacing of rebar. Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
    Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
    Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
    Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point. Fireplace detail shows how the fireplace is to be built. Wall section show typical framing detail of house.
    Most exterior walls are 2x4s; except where wall height requires 2x6s.
Kitchen Features
Nook Breakfast Area Dining
Peninsula Eating Bar
Additional Rooms
Storage Area
Unfinished Future Space
Great Room Living Room
Outdoor Spaces
Covered Rear Porch
Covered Front Porch
Dimension
Depth
50'
Width
60'
Height
23'
Bedroom Features
Main Floor Master Bed Bath
Walk In Closet
Main Floor Bed Bath
Lot Characteristics
Suited For Narrow Lot
Suited For Corner Lot

Pricing

Plan Set Price
5 Copy Set
$625.00
8 Copy Set
$725.00
PDF Set
$825.00
Reproducible Set
$825.00
CAD Set
$1250.00
Single Set
$510.00
Foundation Price
Basement
+$0.00
Additional Construction Sets $50.00/each
Mirror Reverse Sets $35.00/each
Right-Reading Reverse $150.00
Material List $85.00

* The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Plan Content

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $510.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350
Ask us about this plan

How much will this cost to build?

This plan can be modified!
