Craftsman Style Plan 70-1027

Key Specs


Plan Sq Ft

1613
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$335.75
Additional Construction Sets$68.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$85.00
$33.15
Mirror Reversed Sets$63.75

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal
NOW $827.05
You save $145.95
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1613
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Plan Description


This 2-bedroom home packs tons of living space into just over 1600 square feet, making it a perfect plan for homeowners on a budget. An open floor plan combines the kitchen, great room and dining rooms into a spacious living area with a covered porch wrapping much of the rear for additional entertaining space. The master suite is tucked behind the garage and features a Jacuzzi tub, dual sinks, a spacious walk-in closet and convenient access to the laundry room. A two-stall garage with extra storage space makes this an affordable home with lots of punch.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

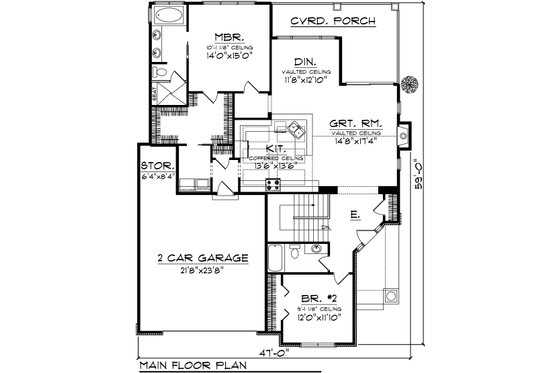

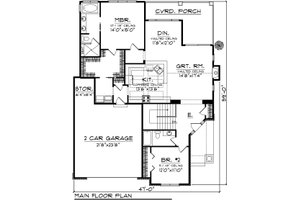

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 59'
Height : 27' 9"
Width : 47'

Area

Total : 1613 sq/ft
Basement Unfinished: 1613 sq/ft
First Floor: 1613 sq/ft
Garage: 583 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Master Bedroom 10', Kitchen Coffered, Great Room/Dining Room/Entry Vaulted
Main Ceiling : 9'

Roof

Primary Pitch : 7:12
Roof Framing : Truss
Roof Load : 47

Exterior Wall Framing

Exterior Wall Finish : Shake / Stone / Siding
Framing : 2 x 6
Insulation : R-19

Bedroom Features

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room
Storage Area

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Basement Foundation:

2655 sq/ft width 45' x depth 59'

Bedroom 2:

141 sq/ft width 12' x depth 11' 10"

Bedroom 2 Closet:

22 sq/ft width 2' 4" x depth 9' 10"

Covered Porch:

308 sq/ft width 22' x depth 14'

Dining Room:

149 sq/ft width 11' 8" x depth 12' 10"

Foyer:

76 sq/ft width 9' 3" x depth 8' 3"

Garage:

512 sq/ft width 21' 8" x depth 23' 8"

Garage Storage:

52 sq/ft width 6' 4" x depth 8' 4"

Great Room:

254 sq/ft width 14' 8" x depth 17' 4"

Hall:

25 sq/ft width 5' 10" x depth 4' 4"

Hall Bathroom:

52 sq/ft width 10' 6" x depth 5'

Hall Closet:

7 sq/ft width 3' 6" x depth 2' 1"

Kitchen:

182 sq/ft width 13' 6" x depth 13' 6"

Laundry Room:

44 sq/ft width 5' 6" x depth 8'

Master Bathroom:

105 sq/ft width 6' x depth 17' 6"

Master Bedroom:

210 sq/ft width 14' x depth 15'

Master Closet:

122 sq/ft width 14' x depth 8' 9"

Porch - Front:

107 sq/ft width 7' 8" x depth 14'

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
* See important information before purchasing
