Plan #434-17

Key Specs


  • 1749 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 2 Garage

Plan Description

This single story, 3 bedroom 2 bath Craftsman home includes an open floor plan . The front porch opens to the great room with an island kitchen; bedrooms to the right. The family entry is from the garage at the rear, through the mudroom.

Floor Plans

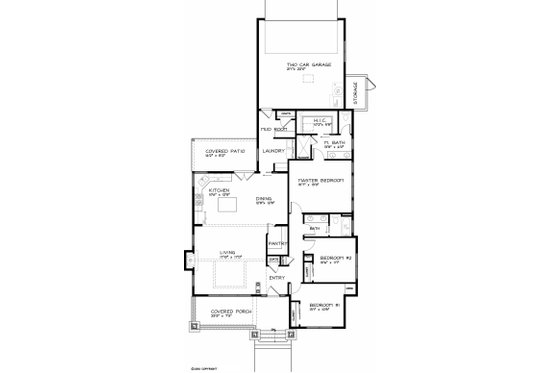

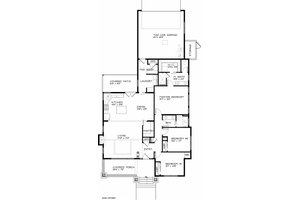

Main Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 1749 Sq/Ft Plan #434-17 Main Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Baths : 2
Bedrooms : 3
Garage Stalls : 2
Stories : 1

Dimension

Width : 43'
Depth : 80'
Height : 20'

Area

Porch Sq Ft : 210 sq ft
Patios Sq Ft : 128 sq ft
Garage Sq Ft : 495 sq ft
Total Sq Ft : 1749 sq ft
Main Floor Sq Ft : 1749 sq ft

Ceiling

Garage Ceiling Ft : 9'
Ceiling Details : Vaulted Living Room w/ functional dormer above. 9'-0" ceilings compliment the wonderful, open floor plan.
Main Ceiling Ft : 9'

Roof

Roof Framing : Stick framed
Primary Pitch : 9:12
Roof Load : 25
Roof Type : Composition
Secondary Pitch : 5:12

Exterior Wall Framing

Wind Rating : 85
Exterior Wall Finish : Lap siding/ wood shingles
Seismic Rating : C
Insulation : Code min. or better
Framing : 2x6 wood studs @ 16" o.c.

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms

Kitchen Features

Walk In Pantry Cabinet Pantry
Kitchen Island

Additional Room Features

Mud Room
Main Floor Laundry
Great Room Living Room
Storage Area

Garage Features

Rear Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Grill Deck Sundeck
Covered Front Porch
Covered Rear Porch

More

Suited For Vacation Home
Empty Nester

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

Please note: This plan is unavailable in the following zip codes: 97701, 97702.

The typical plan set will include:

  • Cover Sheet
  • General Notes
  • Energy Notes
  • Energy Detail; drawings
  • Foundation Plan: 1/4" - 1'0"
  • Main and Upper Level Floor Framing: 1/4" - 1'0"
  • Main and Upper Level Floor Plan: 1/4" - 1'0"
  • Roof Framing Plan: 1/4" - 1'0"
  • Building Sections: 1/4" - 1' 0"
  • Typical Wall Section: 1/2" - 1' 0"
  • Exterior Elevations
  • Exterior Details
  • Electrical switch and outlet plan: 1/4" - 1'0"

Pricing

Plan Set Price

5 Copy Set
$750.00
8 Copy Set
$900.00
PDF Set
$1050.00
Reproducible Set
$1050.00
CAD Set
$1500.00
Single Set
$1050.00

Foundation Price

Crawlspace
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $100.00/each

Right-Reading Reverse $300.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $750.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
