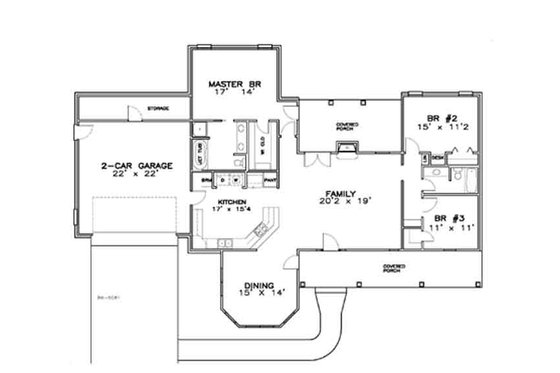

Main Floor Plan

Saved! 3 Beds 2 Baths 1805 Sq/Ft Plan #8-115 Main Floor Plan -


Kitchen Features

Peninsula Eating Bar


Front Entry Garage


Garage Sq Ft
600 sq ft
Porch Sq Ft
460 sq ft
Main Floor Sq Ft
1805 sq ft
Total Sq Ft
1805 sq ft


Main Ceiling Ft



Designer Notes


  • TITLE SHEET: Typically showing a 3D sketch one of the front/side elevations
  • FOUNDATION PLAN: Plan showing dimensional layout of foundation, typically designed in 1/4" scale. Also includes necessary notations pertaining to foundation, keyed section marks of footings, piers, etc. and if conventional plan, floor joist type and direction. (Post-Tension slabs by others.)
  • DETAIL SHEET: This sheet has standard section details for the particular type of foundation chosen. Also includes typical masonry fireplace details, typical cornice sections and symbol schedule, typical wall sections, misc details.
  • FLOOR PLAN(S): All wall placements with dimensions typically drawn at 1/4" scale. Also includes door & window sizes and descriptions, room labels, stairway dimensions, sections and layout. (May be shown on other sheets), notes relating to vaults, electrical floor outlets, location of beams, headers and suggested mechanical equipment locations.
  • ELEVATIONS: Front, rear and all sides of the exterior elevations typically drawn at 1/4" scale. These sheets will include all necessary dimensions, material labels, roof slopes, all architectural elements relating to the exterior of the home, dormer locations on two story homes, if any.
  • ELECTRICAL SCHEMATIC: Suggested light switch, outlet, ceiling fan locations, electrical symbol chart. These sheets are typically done separate from the Floor Plans for clarity. Drawn at 1/4" scale
  • SECTION DRAWINGS: Building cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary, typically drawn at 3/8" scale
  • MILLWORK ELEVATIONS: Suggested cabinet, fireplace elevations as well as any distinctive architectural elements typically drawn at 3/8" scale.
  • ROOF PLAN: Shows the roof lines as you would look down on the house showing slopes, ridges and valleys.

    What is not included: These details can be provided by your builder or local suppliers.

  • Details/layout of heating/cooling systems and ductwork.
  • Plumbing schematics, pipe sizes, locations and details.
  • Electrical wiring layouts and details.
  • Standard, daylight or partial basement plans.
  • Any other location specific engineering.

Additional Rooms

Great Room Living Room
Storage Area

Basic Features

Potential Bedrooms
Garage Stalls


Primary Pitch

Exterior Wall Framing

Exterior Wall Finish


Plan Set Price

5 Copy Set
8 Copy Set
Reproducible Set
Single Set

Foundation Price


Additional Construction Sets $50.00/each

Mirror Reverse Sets $75.00/each

Right-Reading Reverse $100.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.


To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $510.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!
