Craftsman Style Plan 51-519

Key Specs


Plan Sq Ft

1807
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$170.00
Additional Construction Sets$34.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$85.00
$33.15
$85.00
Subtotal
NOW $1742.50
You save $307.50
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1807
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Plan Description


This craftsman design floor plan is 1807 sq ft and has 3 bedrooms and 2 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

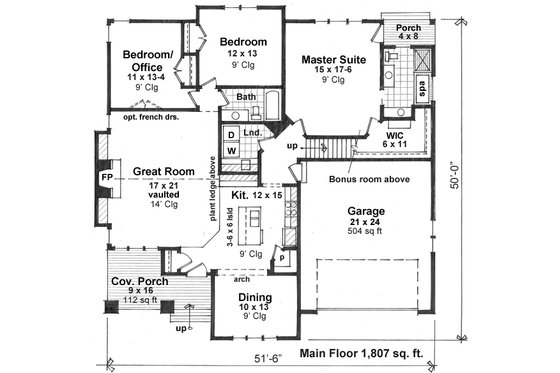

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

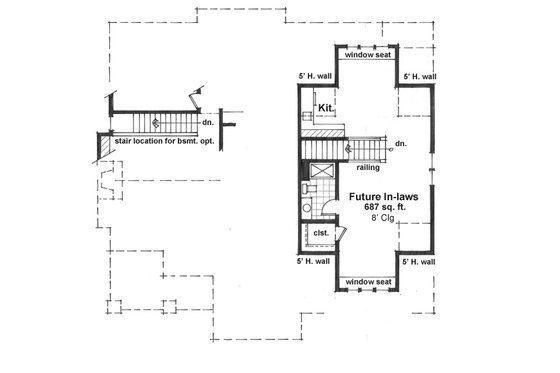

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 50'
Height : 24'
Width : 51' 6"

Area

Total : 1807 sq/ft
Bonus: 687 sq/ft height 8'
First Floor: 1807 sq/ft height 9'
Garage: 504 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'
Main Ceiling : 9'

Roof

Primary Pitch : 7:12
Roof Framing : Truss
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Play Flex Room

Garage Features

Front Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

146 sq/ft width 11' x depth 13' 4"

Bedroom 3:

156 sq/ft width 12' x depth 13'

Dining Room:

130 sq/ft width 10' x depth 13'

Garage:

504 sq/ft width 21' x depth 24'

Great Room:

357 sq/ft width 17' x depth 21'

Kitchen:

192 sq/ft width 12' x depth 16'

Master Bedroom:

280 sq/ft width 16' x depth 17' 6"

Master Walk-In Closet:

66 sq/ft width 6' x depth 11'

Porch - Front:

144 sq/ft width 9' x depth 16'

Porch - Rear:

32 sq/ft width 4' x depth 8'

What's included in this plan set


See a sample plan set
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
