Plan #477-2

Key Specs

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 3 Floors

  • No Garage

  • 1897 sq ft

Plan Description

This contemporized Italianate single house is designed to fit on a narrow or corner lot. It will work well for an urban infill site, but will also fit in comfortably in newer neighborhoods. The design features large rooms despite its relative small size. There are two large unfinished attic spaces with standing head height and egress windows allowing for future expansion. Oversized living room features masonry fireplace.

Floor Plans

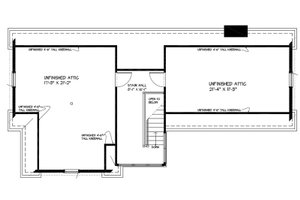

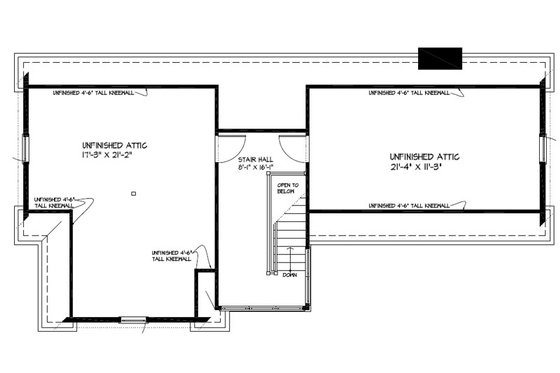

Other Floor Plan
Saved! Colonial Style House Plan - 3 Beds 2.5 Baths 1897 Sq/Ft Plan #477-2 Other Floor Plan -

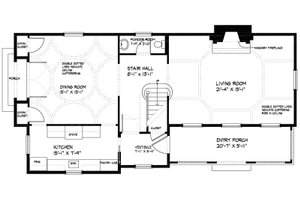

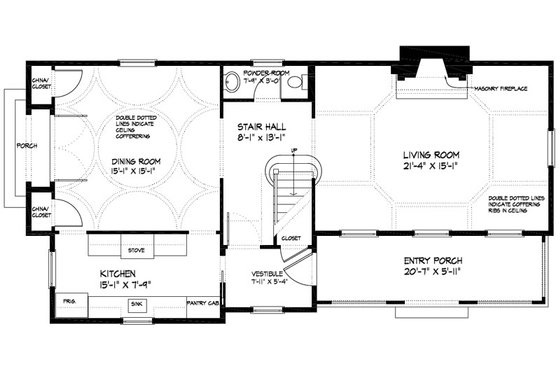

Main Floor Plan
Saved! Colonial Style House Plan - 3 Beds 2.5 Baths 1897 Sq/Ft Plan #477-2 Main Floor Plan -

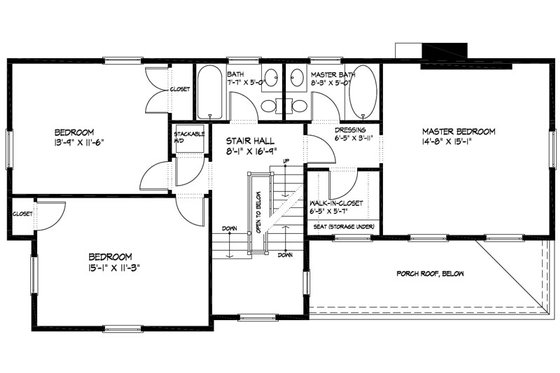

Upper Floor Plan
Saved! Colonial Style House Plan - 3 Beds 2.5 Baths 1897 Sq/Ft Plan #477-2 Upper Floor Plan -

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 0
Potential Bedrooms : 0
Baths : 2.5
Stories : 3
Bedrooms : 3


Depth : 50'
Width : 25'
Height : 32'


Upper Floor Sq Ft : 893 sq ft
Bonus Sq Ft : 556 sq ft
Total Sq Ft : 1897 sq ft
Porch Sq Ft : 138 sq ft
Main Floor Sq Ft : 874 sq ft


Upper Ceiling Ft : 8'
Ceiling Details : Ceilings in living and dining rooms may be coffered
Bonus Ceiling Ft : 7'
Main Ceiling Ft : 9'


Primary Pitch : 7:12
Roof Framing : stick
Roof Load : 40
Secondary Pitch : 3:12

Exterior Wall Framing

Wind Rating : 120
Insulation : 19
Exterior Wall Finish : wood siding
Framing : 2"x6"

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Upstairs Master Bedrooms

Kitchen Features

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Bonus Play Flex Room
Upstairs Laundry
Unfinished Future Space

Garage Features

Detached Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Covered Rear Porch
Loft Balcony
Covered Front Porch

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 3rd Floor Framing
Structural 2nd Floor Framing
Structural 1st Floor Framing

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.


Plan Set Price

5 Copy Set
8 Copy Set
Reproducible Set
Single Set

Foundation Price


Additional Construction Sets $65.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $0.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
