Plan #406-9616

Key Specs

  • 3 Bedrooms

  • 3.5 Bathrooms

  • 1 Floor

  • 2 Garage

  • 1990 sq ft

Full Specs & Features

Basic Features

Garage Stalls : 2
Potential Bedrooms : 0
Baths : 3.5
Stories : 1
Bedrooms : 3


Depth : 54'
Width : 65'
Height : 26'


Bonus Sq Ft : 794 sq ft
Garage Sq Ft : 570 sq ft
Total Sq Ft : 1990 sq ft
Porch Sq Ft : 449 sq ft
Main Floor Sq Ft : 1990 sq ft


Upper Ceiling Ft : 8'
Ceiling Details : Main Floor ceiling heights are 9'-10'.
Main Ceiling Ft : 9'


Primary Pitch : 10:12
Roof Framing : 2x8 Framing

Exterior Wall Framing

Exterior Wall Finish : brick veneer/siding
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms

Kitchen Features

Peninsula Eating Bar
Breakfast Nook

Additional Room Features

Den Office Study Computer
Storage Area
Bonus Play Flex Room
Family Room Keeping Room
Unfinished Future Space

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

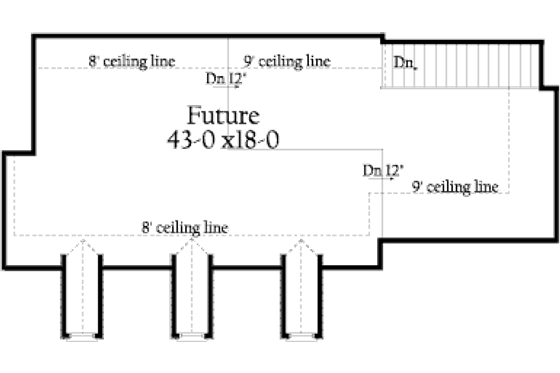

Other Floor Plan
Saved! Southern Style House Plan - 3 Beds 3.5 Baths 1990 Sq/Ft Plan #406-9616 Other Floor Plan -
Main Floor Plan
Saved! Southern Style House Plan - 3 Beds 3.5 Baths 1990 Sq/Ft Plan #406-9616 Main Floor Plan -

What's included in this plan set

  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details


Plan Set Price

5 Copy Set
8 Copy Set

Foundation Price


Additional Construction Sets $55.00/each

Mirror Reverse Sets $55.00/each

Right-Reading Reverse $255.00

Material List $65.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $789.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!
