Plan #20-2152

Key Specs


  • 2158 sq ft

  • 4 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

Floor Plans

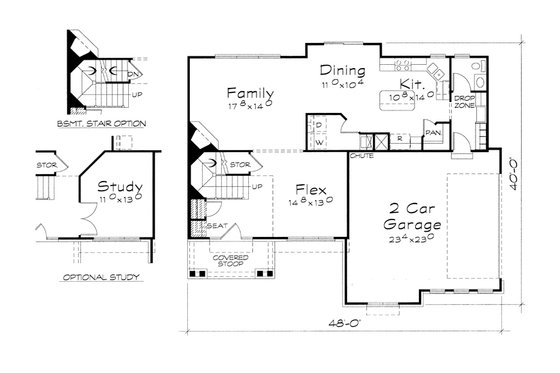

Main Floor Plan Upper Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 2
Garage Stalls : 2
Bedrooms : 4
Baths : 2.5

Dimension

Width : 49'
Height : 29'
Depth : 40'

Area

Upper Floor Sq Ft : 1131 sq ft
Total Sq Ft : 2158 sq ft
Main Floor Sq Ft : 1027 sq ft
Garage Sq Ft : 528 sq ft

Ceiling

Main Ceiling Ft : 9'

Roof

Secondary Pitch : 10:12
Primary Pitch : 8:12

Exterior Wall Framing

Framing : 2x4

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Upstairs Master Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Breakfast Nook

Additional Room Features

Main Floor Laundry
Bonus Play Flex Room
Family Room Keeping Room
Den Office Study Computer

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

What's included in this plan set

  • Cover Page: Rendered elevation and informative reference sections including: general notes and design criteria

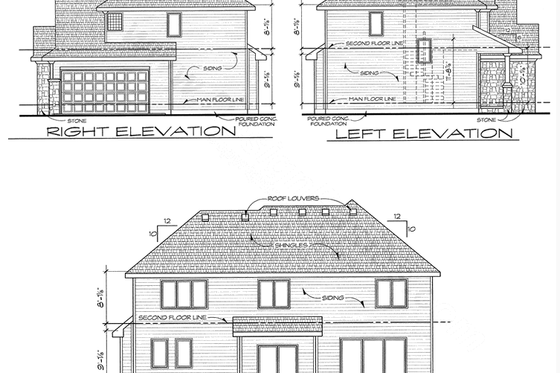

  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional slab and crawl space foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
  • Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights. ** This page not included with floor plans adapted for ICF Products **

Pricing

Plan Set Price

5 Copy Set
$915.00
PDF Set
$915.00
Reproducible Set
$915.00
CAD Set
$1415.00
Single Set
$550.00

Foundation Price

Slab
+$0.00
Basement
+$150.00
Crawlspace
+$150.00

Additional Construction Sets $50.00/each

Material List $125.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
