Plan #437-52

Key Specs


  • 2297 sq ft

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 1 Floor

  • 3 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

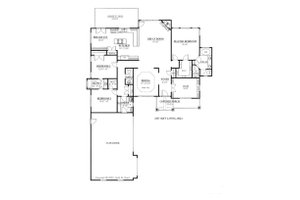

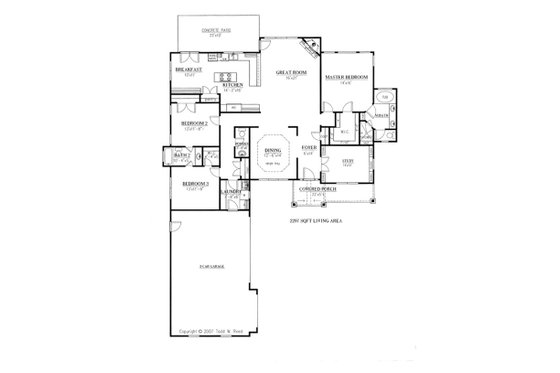

Floor Plan - Main Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2.5 Baths 2297 Sq/Ft Plan #437-52 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Stories : 1
Potential Bedrooms : 0
Garage Stalls : 3
Baths : 2.5
Bedrooms : 3

Dimension

Depth : 82'
Height : 23'
Width : 64'

Area

Garage Sq Ft : 768 sq ft
Porch Sq Ft : 126 sq ft
Total Sq Ft : 2297 sq ft *
Main Floor Sq Ft : 2297 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 9'
Garage Ceiling Ft : 9'

Roof

Roof Framing : Truss
Roof Type : shingle
Primary Pitch : 9:12

Exterior Wall Framing

Insulation : R-13 Walls; R-38 Attic
Exterior Wall Finish : Stucco/Horizontal Siding
Framing : 2"x4"

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $855.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $1215.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse $180.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?

Subtotal Now $855.00

You save $95.00 (10% savings)

Sale ends on 03/29/2015
