Plan #124-830

Key Specs

  • 2 Bedrooms

  • 2.5 Bathrooms

  • 1 Floor

  • 1 Garage

  • 2303 sq ft

Plan Description

In this Prairie home update, six ceiling sections sweep up to the lofty central apex of the hexagonal great room, living room and dining area. The roomy kitchen's raised eating bar rims the peninsular counter that bounds the expansive space on one side, while a gas fireplace offers color and warmth on the other. Bedrooms and utilities are at the rear.

Full Specs & Features

Basic Features

Garage Stalls : 1
Potential Bedrooms : 0
Baths : 2.5
Stories : 1
Bedrooms : 2


Depth : 71'
Width : 80'
Height : 19'


Garage Sq Ft : 497 sq ft
Total Sq Ft : 2303 sq ft
Main Floor Sq Ft : 2303 sq ft


Main Ceiling Ft : 9'


Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 30
Roof Type : shingle

Exterior Wall Framing

Exterior Wall Finish : siding/brick
Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms
Split Bedrooms

Kitchen Features

Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Kitchen Island
Breakfast Nook

Additional Room Features

Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Wrap Around Porch


Suited For Vacation Home
Unusual Shape

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural Roof Framing
Structural 1st Floor Framing

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

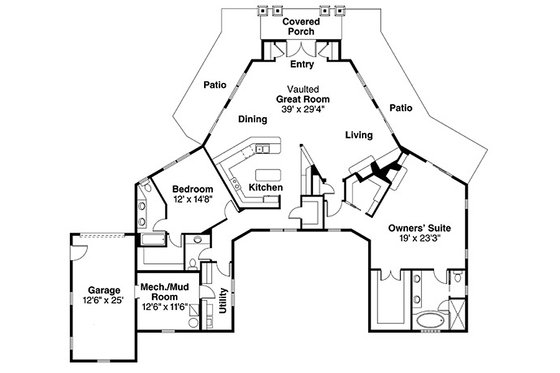

Main Floor Plan
Saved! Craftsman Style House Plan - 2 Beds 2.5 Baths 2303 Sq/Ft Plan #124-830 Main Floor Plan -

What's included in this plan set

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

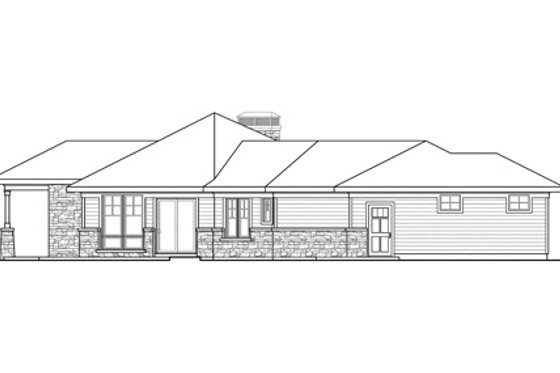

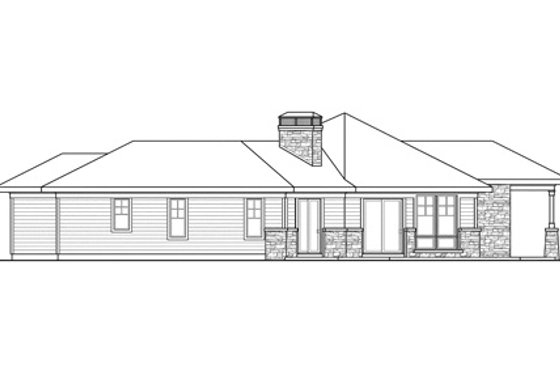

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.


Plan Set Price

5 Copy Set
8 Copy Set
PDF Study Set
Single Set

Foundation Price


Additional Construction Sets $55.00/each

Right-Reading Reverse $250.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1125.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!
