Plan #476-1

Key Specs


  • 2389 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 2 Garage

Floor Plans

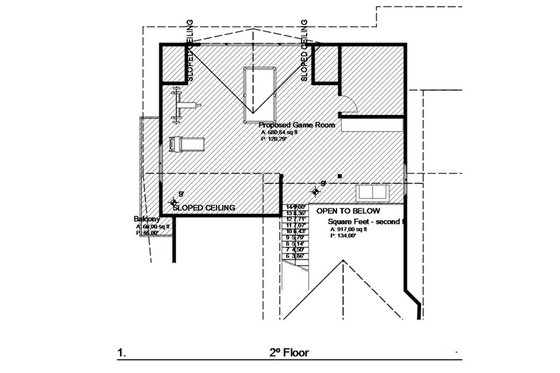

Other Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 2389 Sq/Ft Plan #476-1 Other Floor Plan - Houseplans.com

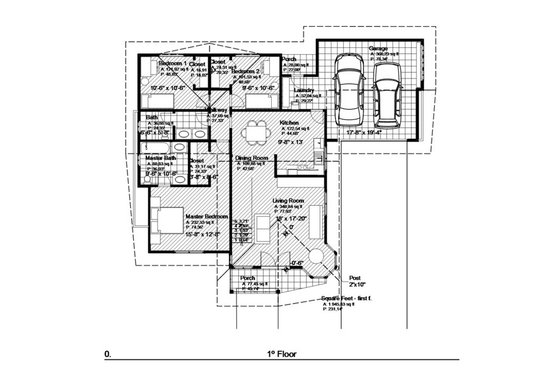

Main Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 2389 Sq/Ft Plan #476-1 Main Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Baths : 2
Stories : 1
Bedrooms : 3
Potential Bedrooms : 0

Dimension

Depth : 50'
Height : 21'
Width : 56'

Area

Main Floor Sq Ft : 1472 sq ft
Bonus Sq Ft : 917 sq ft
Total Sq Ft : 2389 sq ft
Garage Sq Ft : 368 sq ft
Porch Sq Ft : 105 sq ft

Ceiling

Ceiling Details : Inclined ceiling in Living and bonus room.
Main Ceiling Ft : 8'

Roof

Roof Framing : Truss/panel
Primary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Fiber cement board/ wood
Framing : 2"x4"

Bedroom Features

Walk In Closet
Main Floor Master Bedroom

Additional Room Features

Bonus Play Flex Room

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

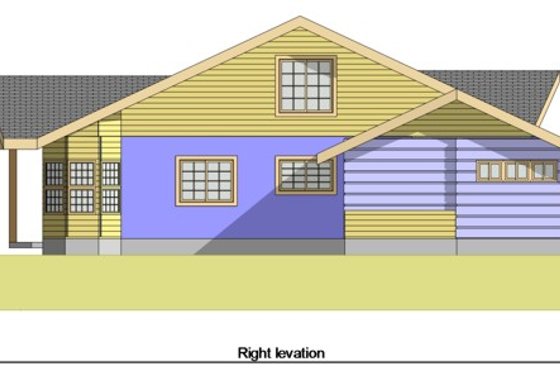

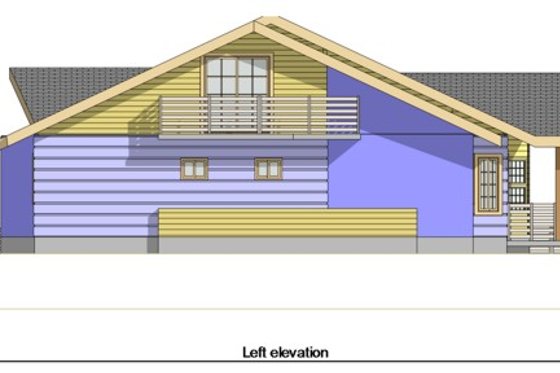

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$675.00
8 Copy Set
$775.00
PDF Set
$775.00
CAD Set
$1350.00
Single Set
$550.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $40.00/each

Mirror Reverse Sets $0.00/each

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
