Plan #432-1

Key Specs


  • 3 Bedrooms

  • 1.5 Bathrooms

  • 3 Floors

  • 2 Garage

  • 2490 sq ft

Plan Description

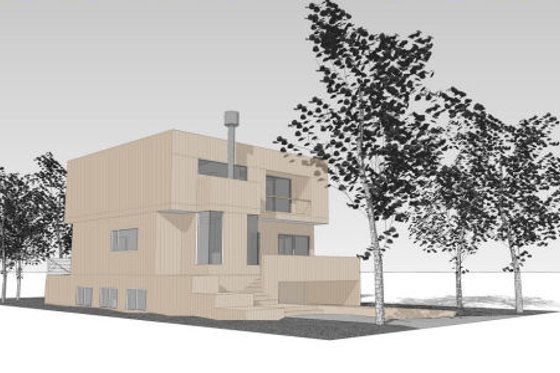

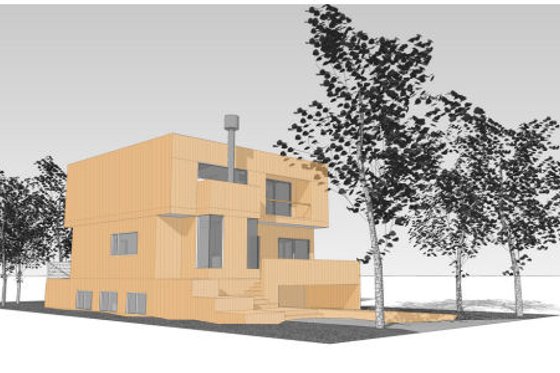

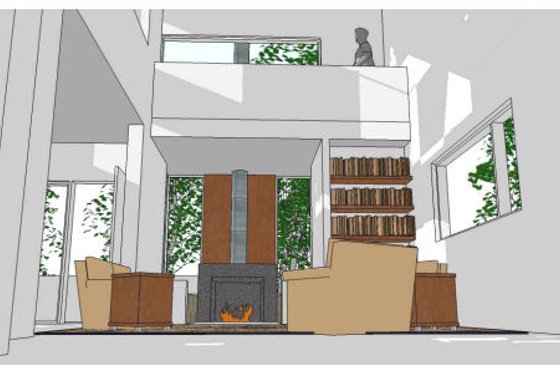

Modern Living Cube. Architect Jerry Veverka's designs are often about getting variety, spaciousness, and natural light into a compact footprint. This 3-bedroom-plus-den plan is suitable for a small suburban or city lot. The garage could be partly sunken. The plan includes a cozy inglenook (a room-within-a-room with built-in seating flanking the fireplace) in the living room on the first floor. Upstairs, sliding panels turn the master bedroom and an adjacent home office into balconies overlooking the living room. The overlapping spaces allow natural light and views between floors, which makes the rooms feel larger than they are.

Floor Plans

Lower Floor Plan
Saved! Modern Style House Plan - 3 Beds 1.5 Baths 2490 Sq/Ft Plan #432-1 Lower Floor Plan - Houseplans.com

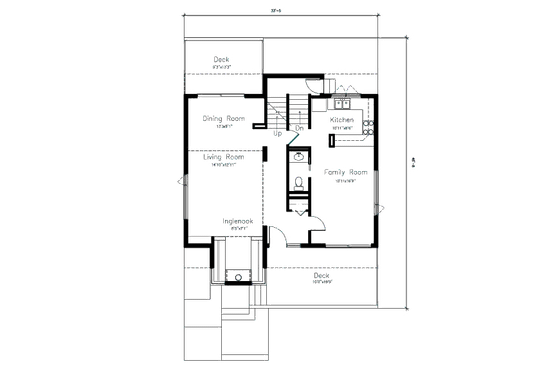

Main Floor Plan
Saved! Modern Style House Plan - 3 Beds 1.5 Baths 2490 Sq/Ft Plan #432-1 Main Floor Plan - Houseplans.com
Upper Floor Plan
Saved! Modern Style House Plan - 3 Beds 1.5 Baths 2490 Sq/Ft Plan #432-1 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Potential Bedrooms : 1
Baths : 1.5
Stories : 3
Bedrooms : 3

Dimension

Depth : 47'
Width : 33'

Area

Upper Floor Sq Ft : 902 sq ft
Decks Sq Ft : 373 sq ft
Garage Sq Ft : 364 sq ft
Total Sq Ft : 2490 sq ft
Lower Floor Sq Ft : 612 sq ft
Main Floor Sq Ft : 976 sq ft

Ceiling

Lower Ceiling Ft : 8'
Upper Ceiling Ft : 8'
Garage Ceiling Ft : 8'
Main Ceiling Ft : 9'

Roof

Roof Framing : Wood
Roof Type : Built-up Roofing System

Exterior Wall Framing

Insulation : Batt
Exterior Wall Finish : Plaster
Framing : 2"x6"

Bedroom Features

Walk In Closet
Upstairs Master Bedrooms

Additional Room Features

Den Office Study Computer
Storage Area
Family Room Keeping Room

Garage Features

Oversized Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot
Suited For Narrow Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$4500.00

Foundation Price

Basement
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Jerry Veverka

null - Houseplans.com
“Our experience has taught us how to use an organized and rational design process to identify the best solutions. Our intention is that the signature of our work is design excellence rather than a particular "look." Our work tends to be contemporary, for our times, and simple rather than cluttered.”

Jerry holds a Master of Architecture from University of California, Berkeley and has won awards from the American Wood Council. His projects have been featured in Better Homes & Gardens, Sunset, The Chicago Tribune, and on HGTV (Home and Garden Television). He creates variety, spaciousness, and natural light within a compact footprint. His Modern Living Cube includes a cozy inglenook; sliding panels allow the master bedroom to overlook the living room.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
