Plan Description


Meet a Mediterranean style floor plan designed with flexibility and a little luxury in mind. Flexible features include a study off the foyer that can double as a guest room in a pinch thanks to an adjacent pool bath that also connects to the backyard, and a Jack-and-Jill bath between bedrooms 1 and 2. Luxuries include a spacious walk-in closet for the master and both a platform tub and a two-person shower in the master bath. A large curved buffet and food prep island separates the kitchen from the great room, and an adjacent covered porch makes indoor-outdoor entertaining easy.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

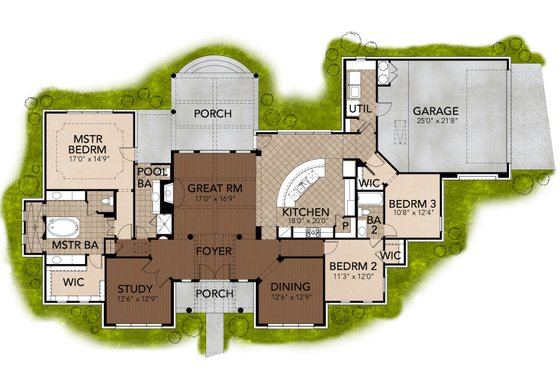

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 53'
Height : 20'
Width : 95'

Area

Total : 2504 sq/ft
Garage : 561 sq/ft
Main Floor : 2504 sq/ft
Porch : 91 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Study & Dining Room: 16', Master Bedroom steps up to 10', Great Room and Rear Porch have cathedral ceilings, Foyer and Front Porch - partial 9 ft. and partial barrel vault to 12'.
Garage Ceiling : 9'
Main Ceiling : 9'

Roof

Primary Pitch : 6:12
Roof Framing : stick
Roof Load : 35
Roof Type : Concrete Tile

Exterior Wall Framing

Exterior Wall Finish : stone
Framing : 2 x 4
Insulation : 15

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Wheelchair Adaptable

Code Compliance

Irc 2003
