Plan #132-110

Key Specs


  • 2505 sq ft

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 3 Garage

Plan Description

Plan includes a detached 3 car garage.

Floor Plans

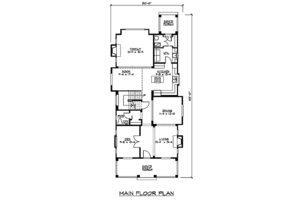

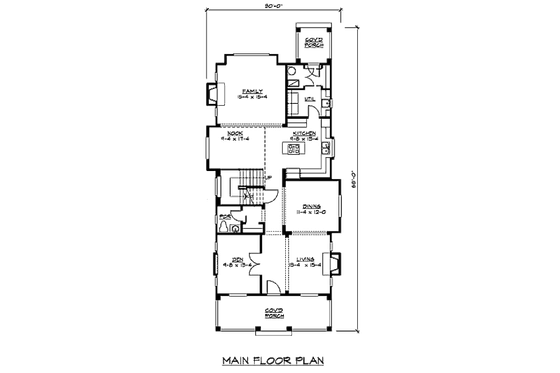

Main Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2.5 Baths 2505 Sq/Ft Plan #132-110 Main Floor Plan - Houseplans.com

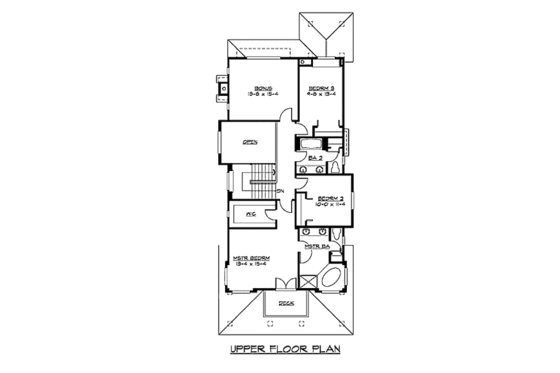

Upper Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2.5 Baths 2505 Sq/Ft Plan #132-110 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 2
Garage Stalls : 3
Potential Bedrooms : 0
Bedrooms : 3
Baths : 2.5

Dimension

Width : 30'
Height : 27'
Depth : 68'

Area

Bonus Sq Ft : 230 sq ft
Upper Floor Sq Ft : 1145 sq ft
Total Sq Ft : 2505 sq ft
Main Floor Sq Ft : 1360 sq ft
Garage Sq Ft : 704 sq ft

Ceiling

Main Ceiling Ft : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Walk In Closet
Upstairs Master Bedrooms

Kitchen Features

Kitchen Island
Breakfast Nook

Additional Room Features

Bonus Play Flex Room
Family Room Keeping Room
Den Office Study Computer
Unfinished Future Space

Entryway

Friend S Entry

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

What's included in this plan set

If you are building this plan in the state of Washington, please call us before placing your order.

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

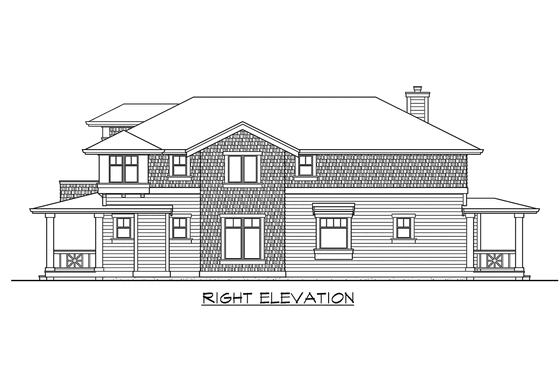

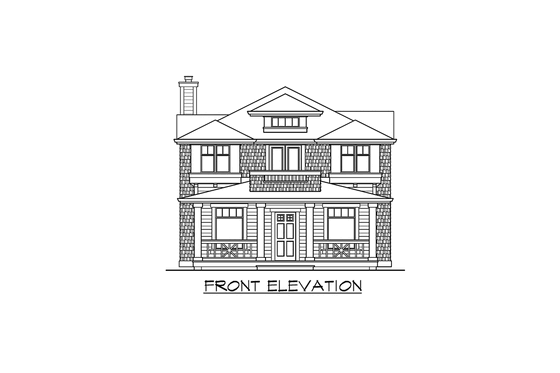

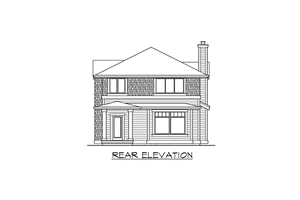

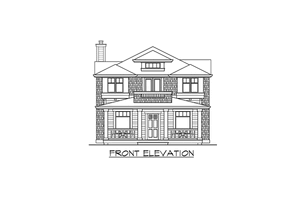

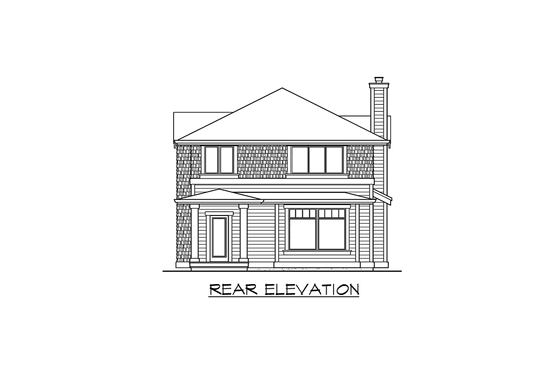

  • Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

Pricing

Plan Set Price

5 Copy Set
$850.00
8 Copy Set
$950.00
PDF Set
$1350.00
Reproducible Set
$1350.00
CAD Set
$2150.00

Foundation Price

Crawlspace
+$0.00

Additional Construction Sets $50.00/each

Right-Reading Reverse $150.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $850.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!

Need help? Let our friendly experts help you find the perfect plan!
Contact us now for a free consultation.
Call: 1-800-913-2350
Email: sales@houseplans.com

Have a Question?

You can also give us a call at 1-800-913-2350 (6am - 6pm) M-F to ask us your question(s).

Thank you for your inquiry. We will try to respond to your question within 24 hours and often respond within minutes, even after hours.
