Plan #430-78

Key Specs


  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 2 Garage

  • 1675 sq ft

Plan Description

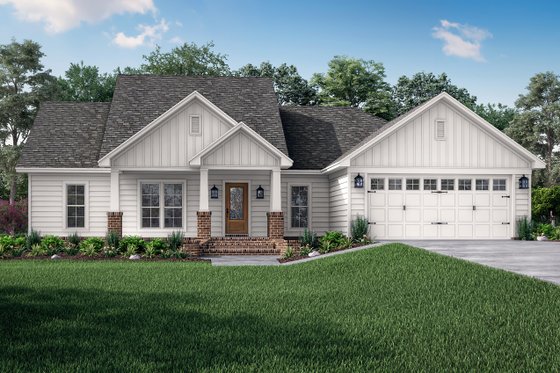

This wonderful 3 bedroom 2 bath Craftsman style home has many features to offer your family. Upon entering the great room you are greeted with a vaulted ceiling, gas fireplace, built in cabinets, and views into the kitchen and dining area. The large open kitchen is perfect for entertaining. It offers a large range, built in pantry, island with raised bar, and lots of cabinet storage. The conveniently located utility room is oversized and includes a broom closet with lots of hanging space. The kids can stay organized with the built-in lockers off the entry. The oversized master suite offers a large walk-in closet, separate sinks, large jet tub, large shower, an enclosed toilet room, and vanity area. With all these features and many more, this plan is sure to bring you and your family a wonderful living experience.

Floor Plans

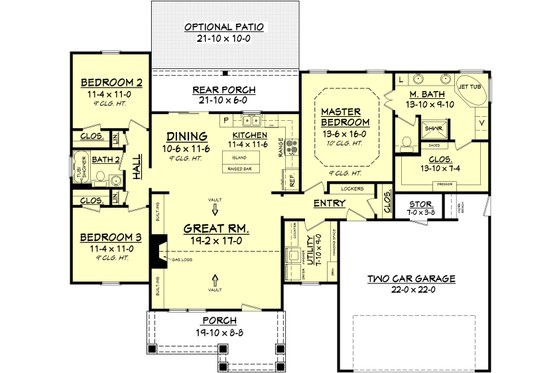

Main Floor Plan
Saved! Traditional Style House Plan - 3 Beds 2 Baths 1675 Sq/Ft Plan #430-78 Main Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Baths : 2
Stories : 1
Bedrooms : 3

Dimension

Depth : 48'
Width : 63'
Height : 24'

Area

Garage Sq Ft : 530 sq ft
Storage Sq Ft : 29 sq ft
Total Sq Ft : 1675 sq ft
Porch Sq Ft : 275 sq ft
Main Floor Sq Ft : 1675 sq ft

Ceiling

Garage Ceiling Ft : 9'
Main Ceiling Ft : 9'

Roof

Primary Pitch : 8/12
Roof Framing : Stick
Roof Load : 40
Secondary Pitch : 9/12
Roof Type : Shingles

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2x4

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms
Split Bedrooms

Kitchen Features

Kitchen Island
Breakfast Nook

Additional Room Features

Storage Area
Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

Oversized Garage
Front Entry Garage

Entryway

Split Entry

Lot Characteristics

Suited For View Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

More

Economical To Build

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

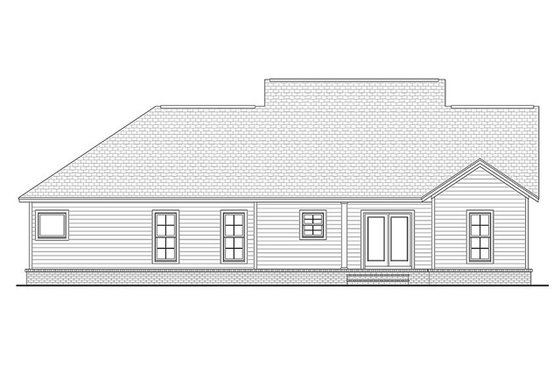

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$745.00
PDF Set
$895.00
Reproducible Set
$945.00
CAD Set
$1345.00
PDF Study Set
$545.00
Single Set
$645.00

Foundation Price

Crawlspace
+$0.00
Slab
+$0.00
Basement
+$375.00
Daylight Basement
+$375.00

Additional Construction Sets $55.00/each

Right-Reading Reverse $155.00

Material List $175.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $745.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
