Plan Description


This stylish single-story modern house is inspired by mid-century modern Eichler tract homes and is suitable for flat to moderately-sloped lots. Large glass windows and sliding glass doors connect house and garden. All rooms have vaulted paneled ceilings. In the major rooms, windows rise all the way to the ceiling. Grooved exterior plywood siding is specified to match the same used on the Eichlers. The simple roof structure can be constructed out of SIPs (Stucturally Insulated Panels) or 2x10's framing, although SIPs are strongly recommended in this application. The foundation is slab on grade that may have to be modified to suit some local soil conditions. The house is designed to handle different wind and seismic loads without any changes to the design by simply increasing nailing in shear walls. The SIPs roof is designed to handle 65 lbs/square foot total load. The 2x10 roof is designed to handle 40 lbs/square foot of live load with maximum allowable deflection. View more Ranch style house plans

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

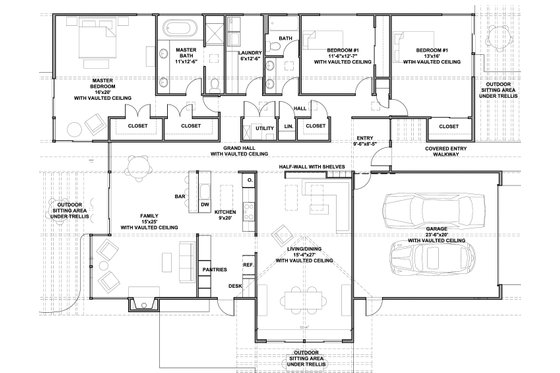

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 73'
Height : 13'
Width : 53'

Area

Total : 2587 sq/ft
Garage : 496 sq/ft
Main Floor : 2587 sq/ft
Patios : 500 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : All ceilings are vaulted.

Roof

Primary Pitch : 2:12
Roof Framing : SIP or 2x10
Roof Load : 65 lbs/sf total load
Roof Type : Standing seam metal

Exterior Wall Framing

Exterior Wall Finish : Grooved Siding (Eichler Siding)
Framing : 2"x4"
Insulation : R-13 at Walls, R-38 at roof.

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Storage Area

Garage Features

Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

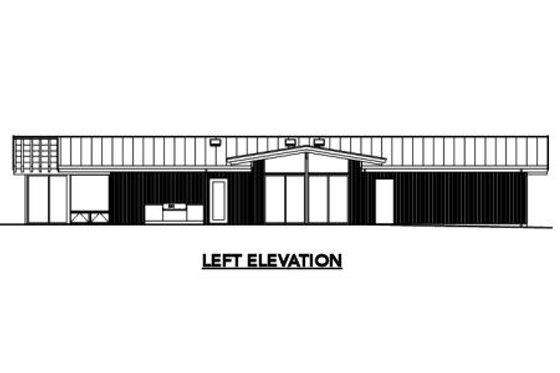

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
