Plan #140-138

Key Specs

  • 4 Bedrooms

  • 3 Bathrooms

  • 1 Floor

  • 2 Garage

  • 2596 sq ft

Full Specs & Features

Basic Features

Garage Stalls : 2
Potential Bedrooms : 0
Baths : 3
Stories : 1
Bedrooms : 4


Depth : 63'
Width : 67'


Garage Sq Ft : 540 sq ft
Total Sq Ft : 2596 sq ft
Porch Sq Ft : 903 sq ft
Main Floor Sq Ft : 2596 sq ft


Main Ceiling Ft : 8'


Primary Pitch : 4:12
Secondary Pitch : 5:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Main Floor Bedrooms
Split Bedrooms

Kitchen Features

Peninsula Eating Bar
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Storage Area
Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

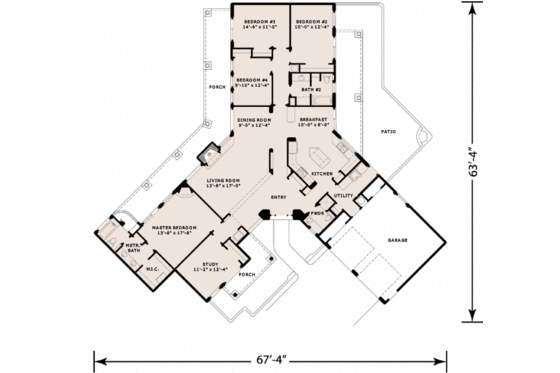

Main Floor Plan
Saved! Adobe / Southwestern Style House Plan - 4 Beds 3 Baths 2596 Sq/Ft Plan #140-138 Main Floor Plan -

What's included in this plan set

  • Cover page
  • Elevations set to 3/16" scale
  • Dimensioned Floor plans set to 3/16" scale
  • Roof plan: Overhead plan shows peaks, valleys and roof pitch
  • Building Sections Interior Elevations: Cabinet and millwork details.
  • Electrical floor plan layout
  • Foundation plan
  • General notes and details.


Plan Set Price

5 Copy Set
8 Copy Set
Reproducible Set
Single Set

Foundation Price


Additional Construction Sets $50.00/each

Mirror Reverse Sets $60.00/each

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
