- Foundation plan: 1/4" scale monolithic slab showing locations of plumbing fixtures
- Floor plan(s): Shows electrical layout.
- Sections: Plan includes at least one cross section cut through main body of house and may include various construction details. Other details and/or sections may be included on other sheets depending on the complexity of the plan.
- Elevations: 1/4" scale drawings of the front, rear and sides. May contain details specific to that plan.
Roof plan: 1/8" scale or greater
- Cabinet elevations: 1/4" scale or greater
- Monolithic slab details and cornice details
- Note: Plans do not contain plumbing or mechanical drawings.
Plan Set Price
Additional Construction Sets $50.00/each
Mirror Reverse Sets $50.00/each
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.

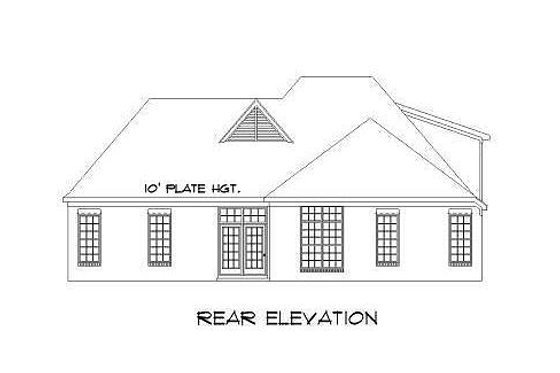

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

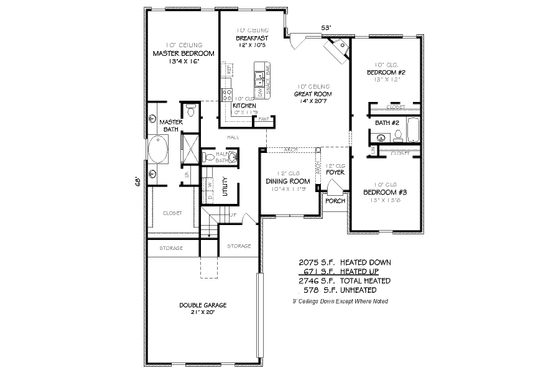

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Best Price Policy
To find out what documents you should expect with your house plans, see what's included?
How much will this cost to build?
This plan can be modified!
