Photographs may show modified designs. All images are copyrighted.

  • Plan 63-303
  • 2866 sq ft
  • 5 beds
  • 3.50 baths
  • 65' wide
  • 47' deep
more details
Houzz
Email Print

Plans

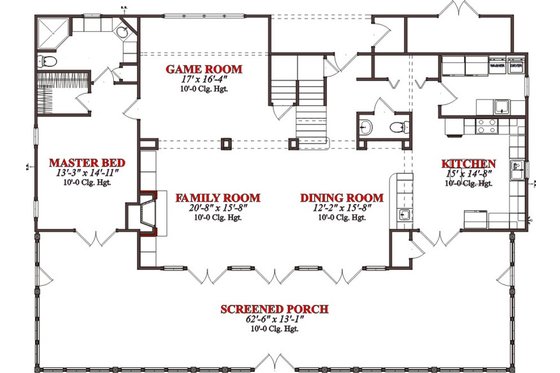

Main Floor Plan
Saved! Houseplans.com Cabin Main Floor Plan Plan #63-303

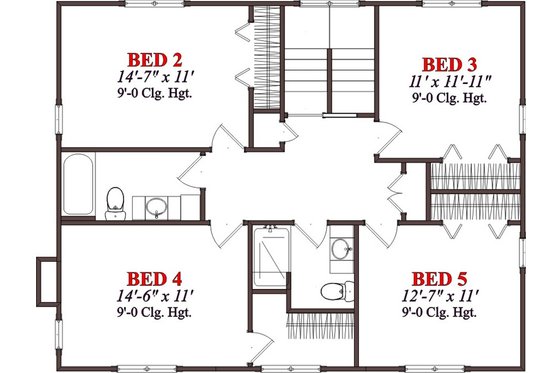

Upper Floor Plan
Saved! Houseplans.com Cabin Upper Floor Plan Plan #63-303

Specifications

Plan Styles
Cabin
Cottage
Beach
Designer Notes
Included

  • FOUNDATION PLAN
  • FLOOR PLAN(S)
  • ELECTRICAL PLAN
  • EXTERIOR ELEVATIONS: front, rear, left and right
  • SECTIONS AND MISCELLANEOUS DETAILS
Bedroom Features
Walk In Closet
In Law Suite
Main Floor Bed Bath
Upstairs Bedrooms Bath
Main Floor Master Bed Bath
Dimension
Width
65'
Height
30'
Depth
47'
Ceiling
Main Ceiling Ft
10'
Upper Ceiling Ft
9'
Code
Irc 2006
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Exterior Wall Framing
Framing
2"x4"
Exterior Wall Finish
Siding
Area
Main Floor Sq Ft
1880 sq ft
Porch Sq Ft
1065 sq ft
Garage Sq Ft
103 sq ft
Upper Floor Sq Ft
986 sq ft
Total Sq Ft
2866 sq ft
Roof
Roof Load
30
Primary Pitch
7:12
Roof Framing
stick
Additional Rooms
Bonus Play Flex Room
Main Floor Laundry
Family Room Keeping Room
Storage Area
Hobby Rec Room Game Room
Exercise Room
Library Room
Den Office Study Computer
Outdoor Spaces

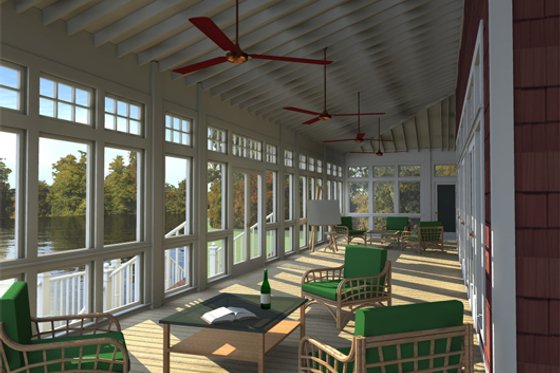

Screened Porch Sunroom
Basic Features
Baths
3.50
Bedrooms
5
Potential Bedrooms
0
Stories
2
Garage Stalls
0
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar
More
Unique Features
Suited For Vacation Home
Structural
Foundation Drawing
Structural Notes
Structural Roof Framing
Structural 2nd Floor Framing
Structural 1st Floor Framing

Pricing

Plan Set Price
5 Copy Set
$852.50
8 Copy Set
$902.00
PDF Set
$1100.00
Reproducible Set
$1100.00
CAD Set
$1391.50
Single Set
$665.50
Foundation Price
Pier
+$0.00
Additional Construction Sets $35.00/each
Mirror Reverse Sets $35.00/each
Right-Reading Reverse $150.00
Material List $370.00

* The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Plan Content

  • Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
  • Foundation: Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations: Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
  • Floor joist: Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist: Complete with spans, sizes and direction
  • Sections: Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $665.50

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350
Ask us about this plan

How much will this cost to build?

This plan can be modified!
